34

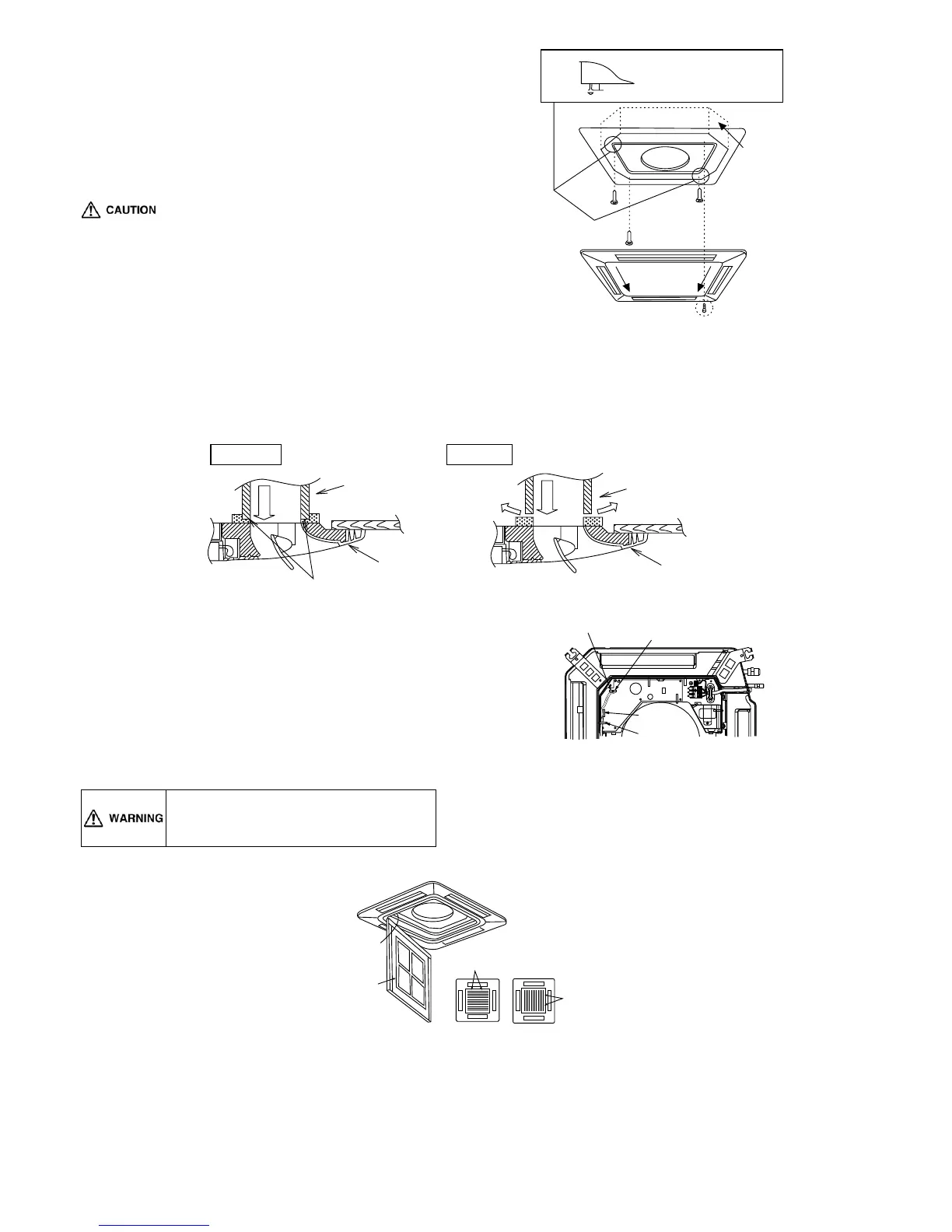

2 Fitting the decorative panel
o Temporarily secure the fixing screws (3
pcs.) before fitting the decorative panel.
(For temporarily securing the front grille.)
o Place decorative panel on the screws (3
pcs.) before fitting, move decorative
panel as illustrated and tighten all the
screws (4 pcs.).
Check beforehand the height from the ceiling to
the unit.
The front grille fitting direction is determined by
the unit direction.
Only use the screws with the length of 1-3/8"
(35 mm) which is provided, to fix the decorative
panel.
Do not use other screw which is longer it may
cause damage to the drain-pan and other
components.
3 Fit the decorative panel and ceiling wall together and confirm no gap in between. Readjust indoor unit height,
if there is a gap between ceiling wall and decorative panel.
4 Open the indoor control box cover by
removing 2 pcs of screw.
5 Insert firmly the connector of cosmetic louver
to indoor pcb CN-STM1, CN-STM2 and
CN-DISP.
Be caution not to clamp the cord in between
control board and control board cover.
6 After complete, install back removed part
follow opposite procedure.
Be sure to hook the air inlet grill string,
to prevent grill from falling and causing
injury from it.
Approx. 3/4" (20 mm)
Decorative
Front grille fixing
scews (4 pcs.)
Tighten this
screw first
after hanging
the grille
f
To Next Page
