Panasonic CS-S18TKV Service Manual

127

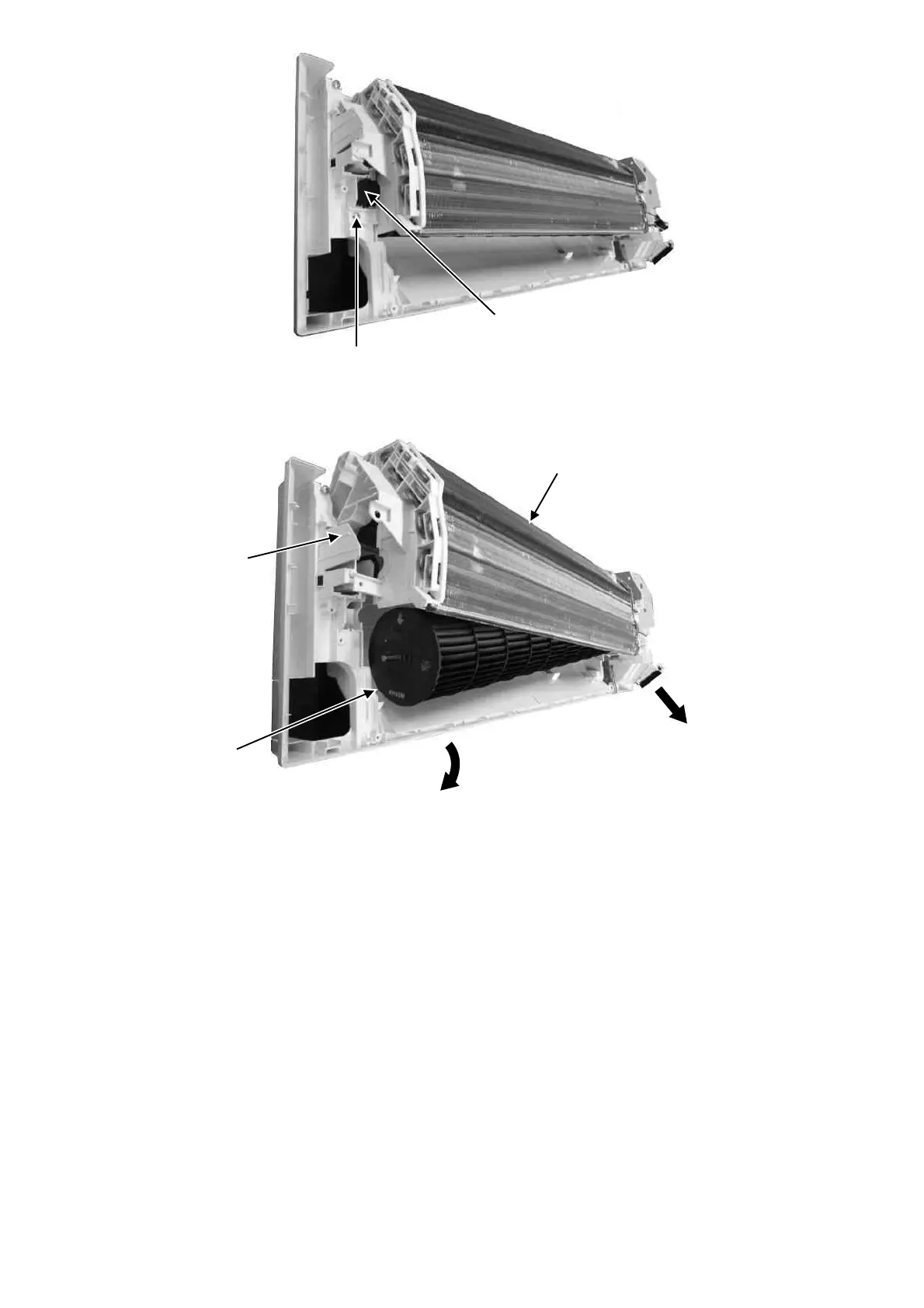

Figure 8
Figure 9
15. Remove the bearing
by pulling it gently.
14. Remove the screw from
the evaporator.
17. Remove the cross flow fan from the
unit by pulling it to the left and downward.
16. Push the holdfast to
theleftandliftupthe
evaporator.
Cross flow fan
18. Fan motor can be removed after
the removal of the cross flow fan.
Evaporator
Reminder: To reinstall the fan motor, adjus
t
the fan motor connector to 90° towards you
before fixing control board.
