Figure 10

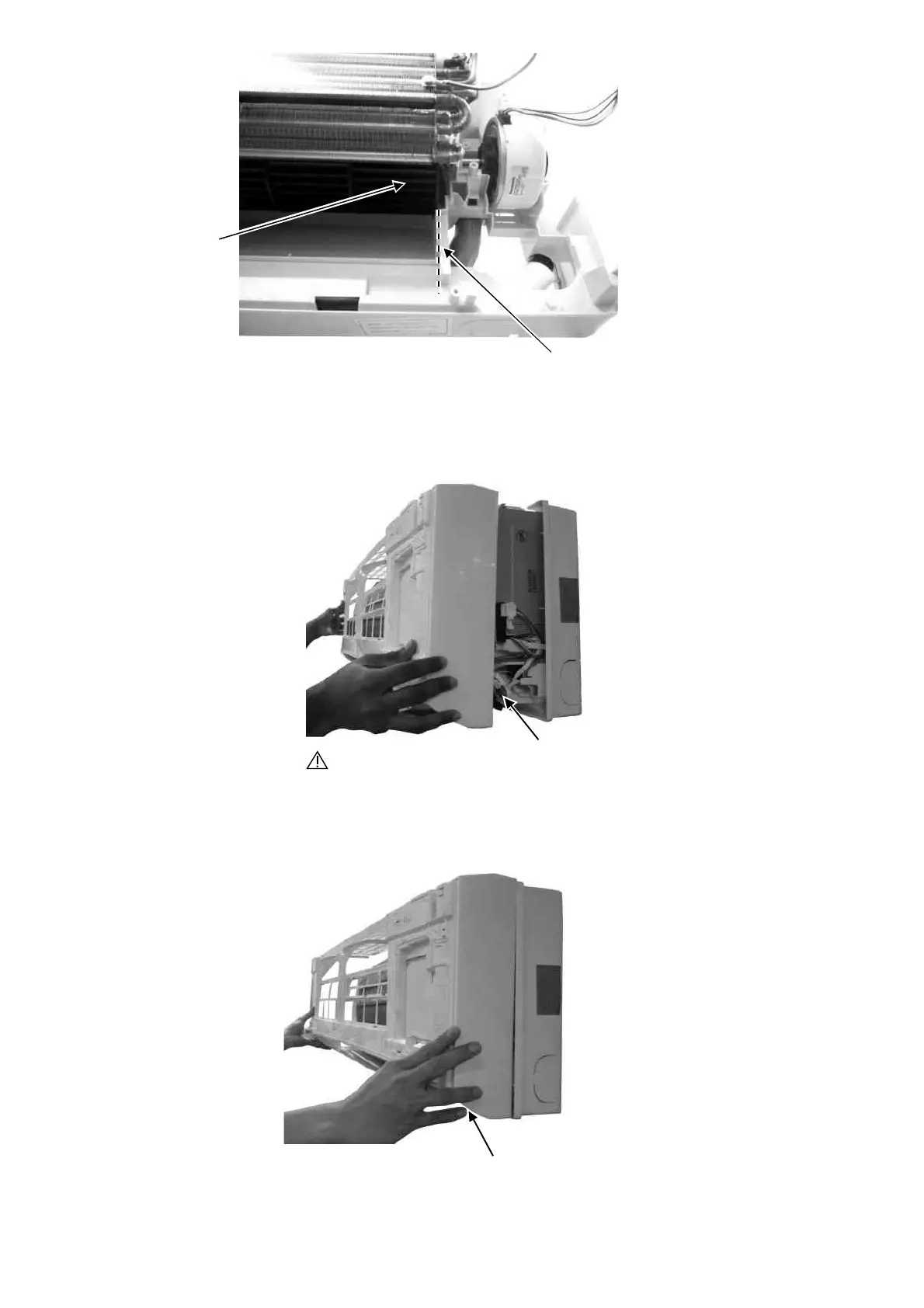

16.1.1.6 To Assemble the Front Grille
Figure 11
Figure 12
Reminder: To reinstall the cross flow
fan, ensure cross flow fan is in line as
shown in figure 10.
Cross Flow Fan
Do not directly fix the front grille
complete, to avoid hitting the
Receiver PCB.
CAUTION
Receiver PCB
19. Gently assemble the right side of the
front grille first then fix the left side.
