80

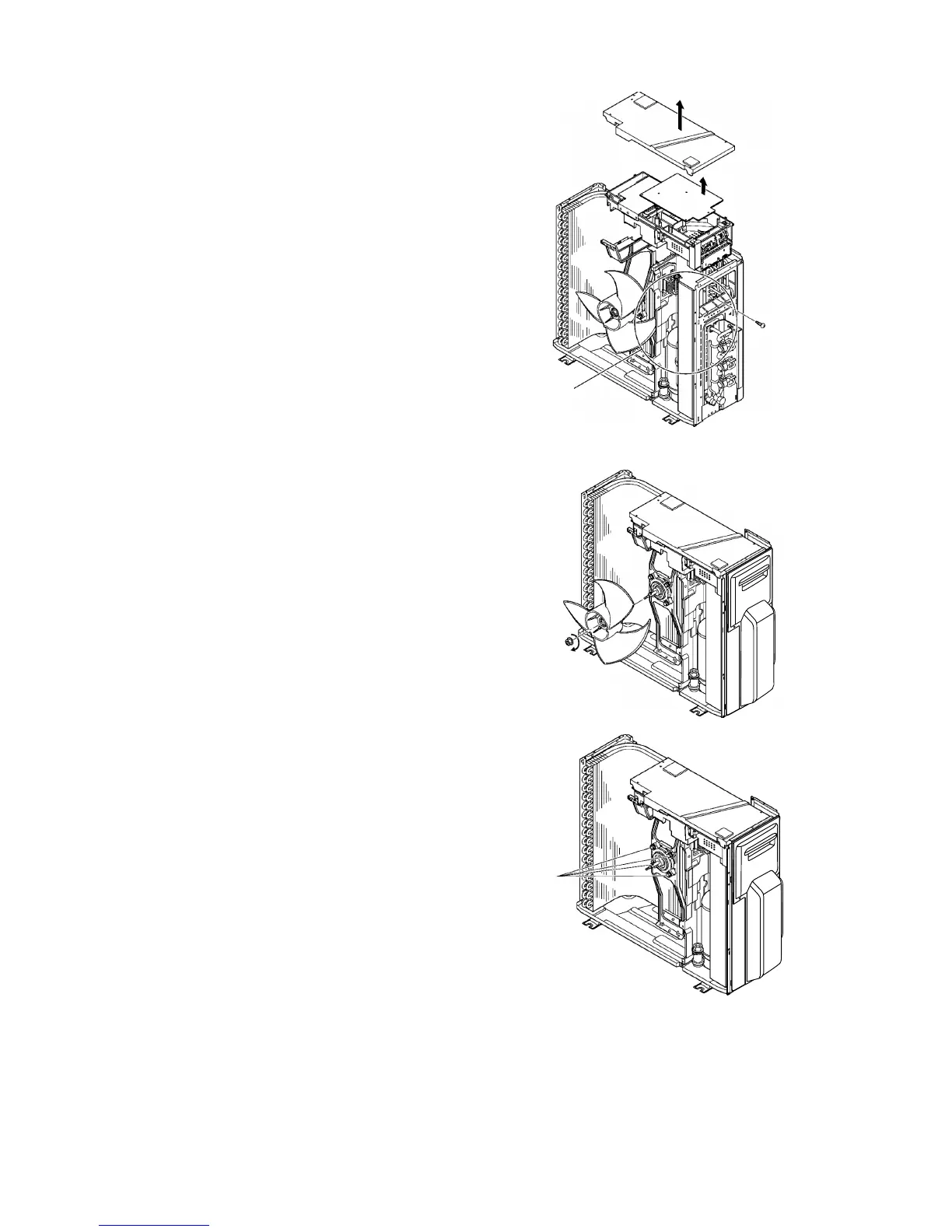

16.1.3 Removing the Control P.C. Board
6. Remove the drip proof cover.
7. Disconnect the connectors (lead wires of the
compressor, sensor, and others).
8. Remove the screw at the right side of the
control box, and pull out the entire control box.
9. Release the control P.C. Board tab to remove
the control P.C. Board.
16.1.4 Removing the Propeller Fan and Fan Motor
1. Follow the steps in 16.1.1 for removing the
cabinet top plate and cabinet front plate.
2. Remove the propeller fan by removing the nut
turning clockwise at its center.
3. Disconnect the fan motor connector from the
control P.C. Board.
4. Loosen the 4 fan motor mounting screws then
remove the fan motor.
6
9
8
7
2
4
To Next Page
