Panasonic CU-4E24RBU - Outdoor Unit Removal Procedure (CU-4 E24 RBU)

81
16.2 Outdoor Unit Removal Procedure (CU-4E24RBU)
Caution! When handling electronic controller, be careful of electrostatic discharge.

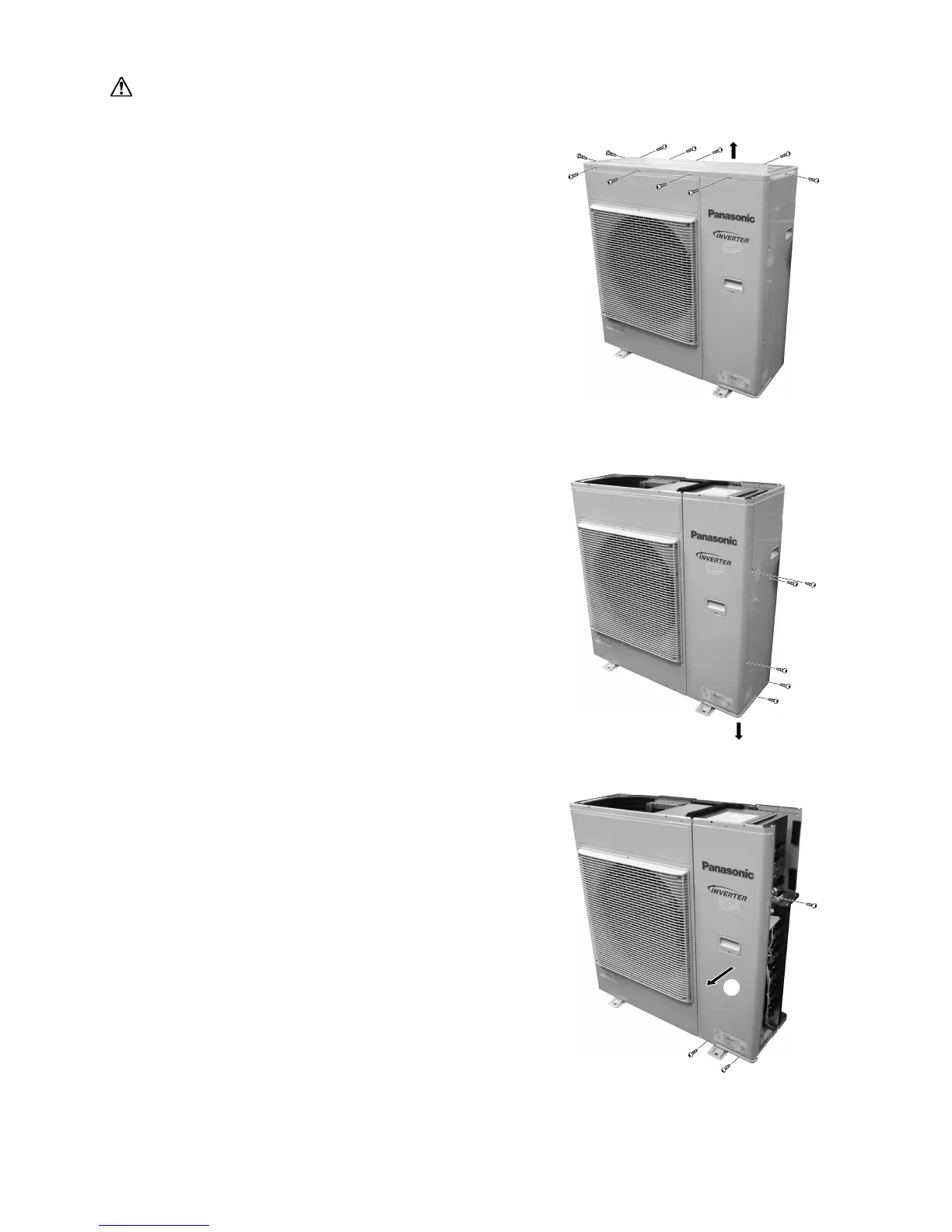

16.2.1 Removing the Cabinet Top Plate
1. Remove the cabinet top plate (remove the
11 screws).
Fig. 1
16.2.2 Remove the Control Board Cover and Particular Plates
2. Remove the control board cover (remove the
5 screws).
Fig. 2
3. Remove the particular plate (remove the
3 screws).
Fig. 3
1
2
3
