Panasonic CU-4E24RBU - 16 Disassembly and Assembly Instructions; Outdoor Unit Removal Procedure (CU-3 E19 RBU)

79
WARNING
16. Disassembly and Assembly Instructions
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
16.1 Outdoor Unit Removal Procedure (CU-3E19RBU)
Caution! When handling electronic controller, be careful of electrostatic discharge.

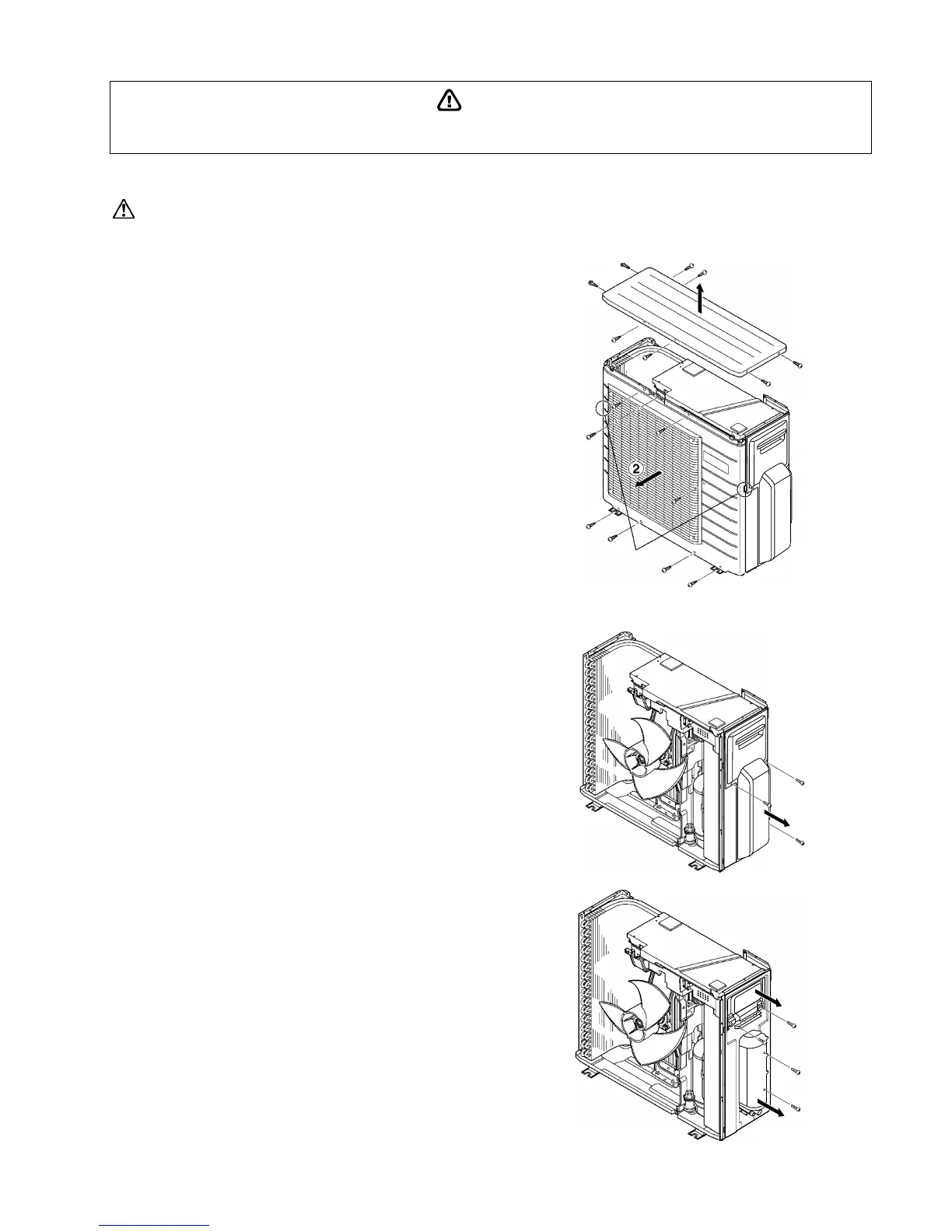

16.1.1 Removing the Cabinet Top Plate and Cabinet Front Plate
1. Remove the cabinet top plate (remove the
8 screws).
2. Remove the 8 screws (1 on the center, 3 at
the top and 4 at the bottom) securing the
cabinet front plate, release the 2 hooks
(1 each at the left and right), and pull the
cabinet front plate toward front side.
16.1.2 Remove the Control Board Cover and Particular Plates
3. Remove the control board cover (remove
3 screws).
4. Remove the particular plate (remove
2 screws).
5. Remove the particular plate (remove
2 screws).
1
Tabs
3
4
5
