Panasonic CU-4E24RBU - Page 82

82

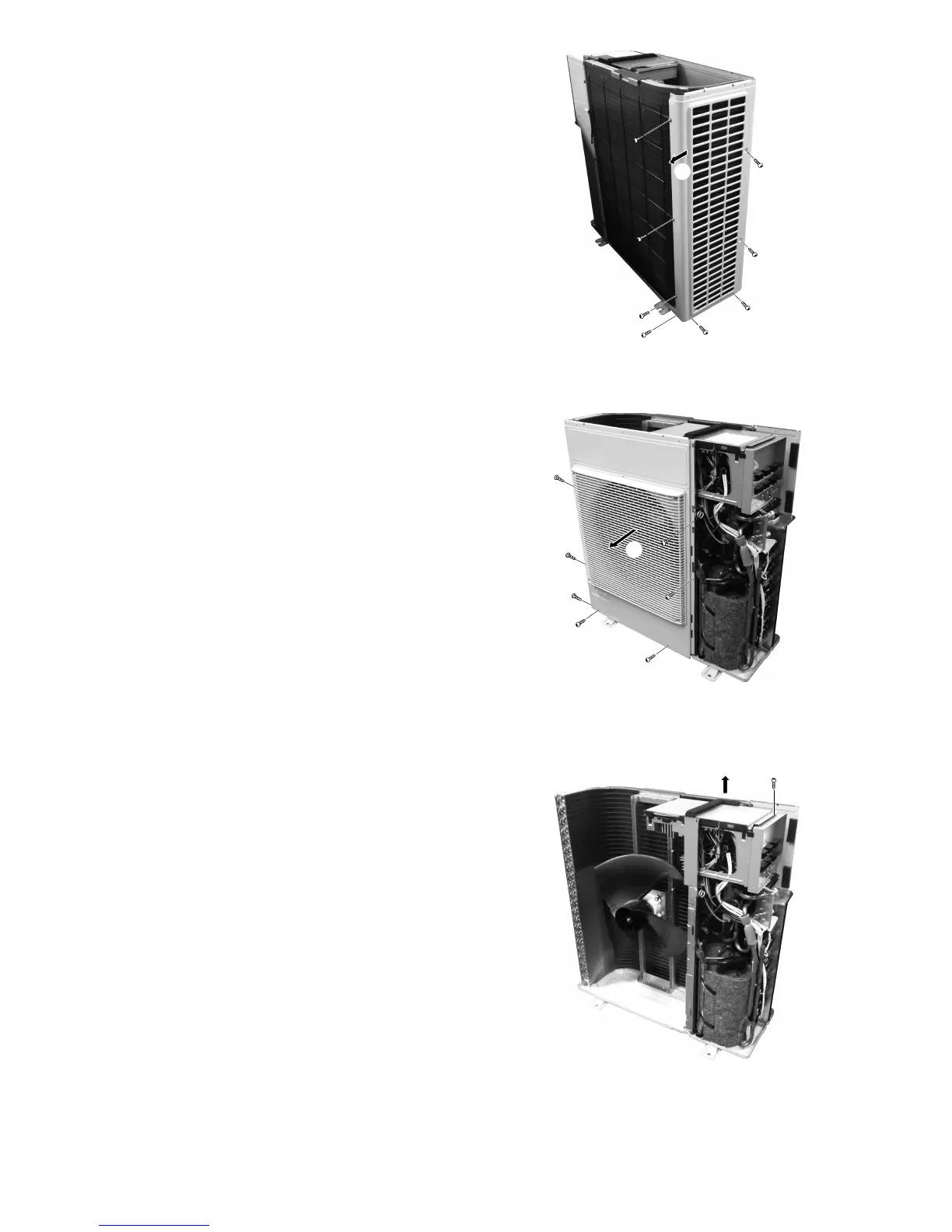

4. Remove the particular plate (remove the
8 screws).
Fig. 4
16.2.3 Removing the Cabinet Front Plate
5. Remove the cabinet front plate (remove the
7 screws).
Fig. 5
16.2.4 Removing the Control P.C. Board
6. Remove the cover by release the screw.
Fig. 6
4
5
6
