11
RQTV0136
(1) Cassette eject button (<, EJECT). . . . . . . . . . . . . . . . . . . . . . l 17
(2) Disc tray open/close button (<, OPEN/CLOSE) . . . . . . . . . . l 17
(3) Stop button (∫) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 19, 32
(4) Play button (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 26
(5) Recording button (¥, REC) . . . . . . . . . . . . . . . . . . . . . . . . . . . l 18
(6) Standby/on switch (Í/I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 14
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
(7) AV2 input terminals (AV2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 50
(8) DVD-SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 27, 29
VHS-REW/FF buttons (V/6, 5/W) . . . . . . . . . . . . . . . . l 32
(9) Channel up/down
Tracking/V-Lock buttons (CH, X, W) . . . . . . . . . . . l 14, 18, 33, 61
(10)DVD/VHS drive indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 10
≥Lights when the DVD or VHS drive is selected.
(11)DRIVE SELECT button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 10
≥The selected drive changes each time you press [DRIVE SELECT].
(12)Connector for a digital video (DV) camera . . . . . . . . . . . . l 50, 51
(13)One Touch Transfer (copying) operation button
≥From VHS to DVD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 45
≥From DVD to VHS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l 47
Common to DVD/VHS
[A] Recording mode indicator
DVD: (l 19)
≥XP SP LP EP (all on): FR mode (l 22)
VHS:(l 19)
≥SP: When recording or playing in Normal mode.
≥LP: When recording or playing in Long play mode.
≥EP: When recording or playing in Extra long play mode.
[B] Main display
≥Current time
≥Disc recording and play counter
≥VHS recording and play counter
≥Miscellaneous messages, etc.
VHS
(1) Timer recording indicator ( ) (l 23, 24)
On:
When a timer recording programme is registered and a recordable
video cassette is inserted.
Flashes:
When the unit cannot record a timer recording programme (e.g., there
is no video cassette, etc.).
(2) Tape indicator
(3) Tape operation status
DVD
(1) Timer recording indicator ( ) (l 23, 24)
On:
When a timer recording programme is registered and a recordable
disc is inserted.
Flashes:
When the unit cannot record a timer recording programme (e.g., there
is no disc, etc.).
(2) Disc operation status
(3) Disc indicator

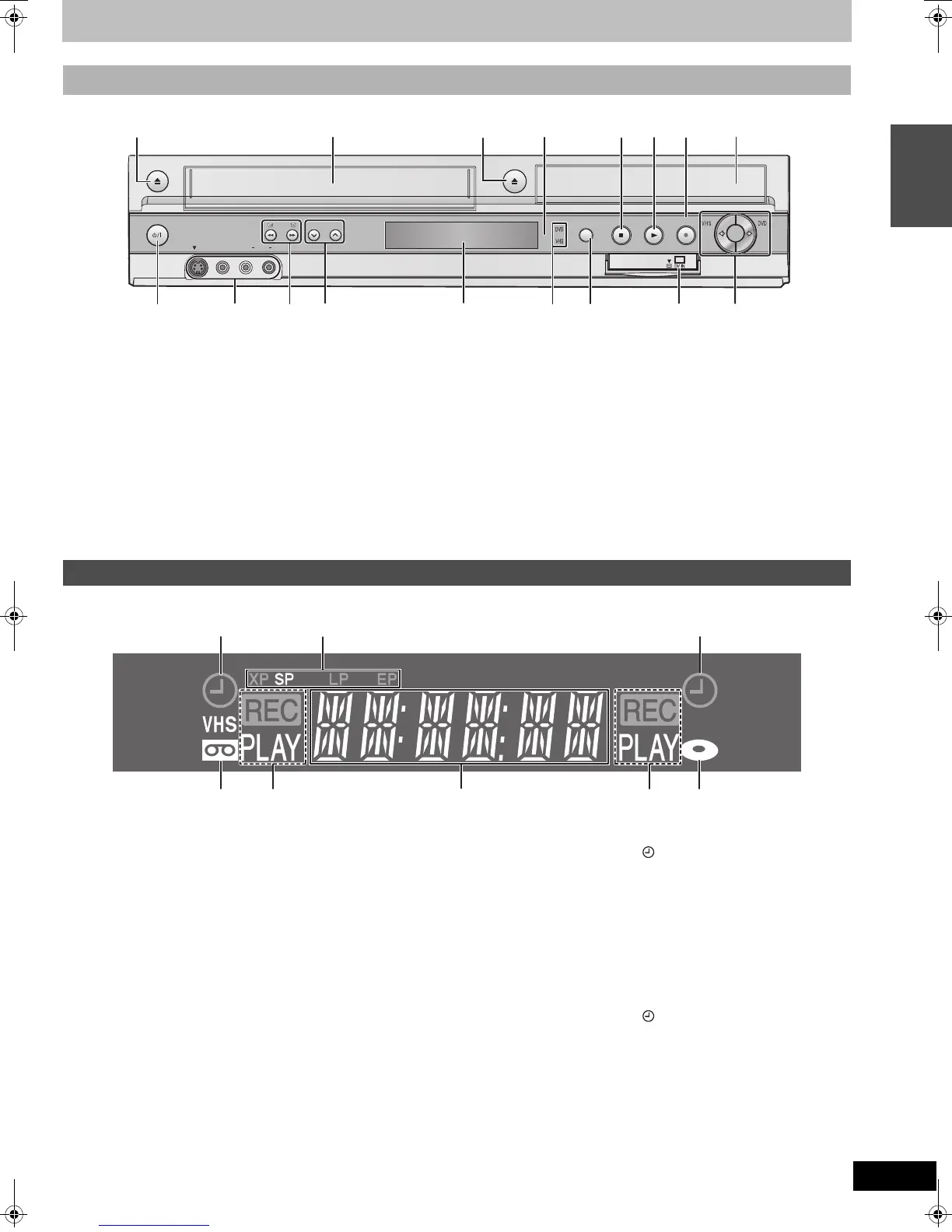

Main unit
CH
DRIVE
SELECT
REC
OPEN / CLOSEEJECT
S VIDEO IN
AV 2
VIDEO IN
/MONO
AUDIO IN
R
L
COPYING
(2)
(1)
(5)
(3)
(4)
(13)
(6)
(7)
(8)
(9)
(11)
(12)
(10)
Remote control
signal sensor
Cassette compartment Disc tray
The unit’s display
The unit’s display
(2)
(3)
(2)
(3)
(1)(1)
[A]
[B]
Control reference guide/Remote control/Main unit
