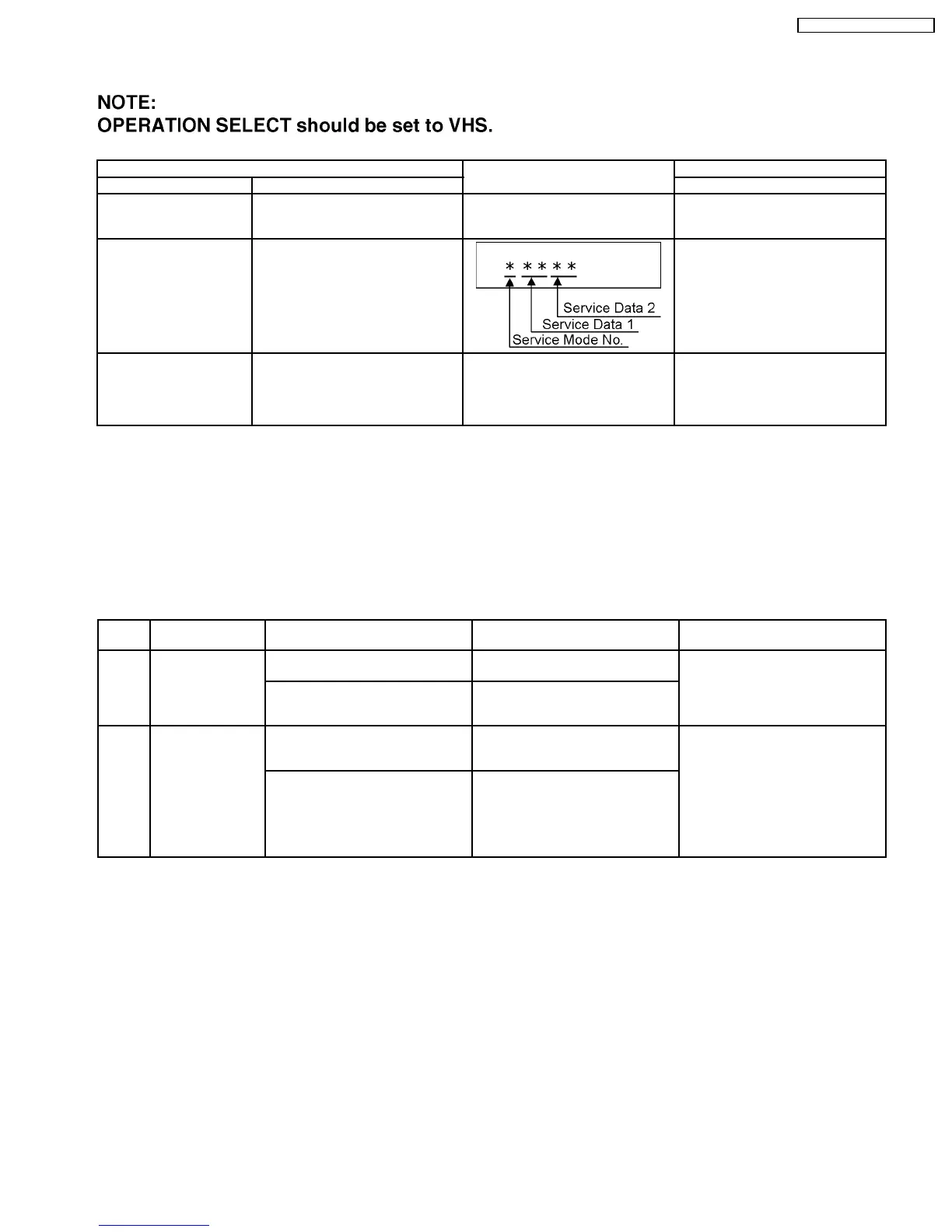

7.2.2. (VHS) Special Modes Setting
Item FL display Key operation
Mode name Description Front Key
Tracking Center Tape Tracking is adjusted to center
FIX position.
No display. During PLAYBACK, press [CH UP]
and [CH DOWN] keys
simultaneously.
VHS Service Mode In order to make service easy, a part
of inside information of a
microprocessor is displayed on FIP.
*Details are described in "7.2.3.
(VHS) Service Modes ".
Press [STOP], and [EJECT] keys
simultaneously for 3 seconds when
power is off.
Eject Ejecting Cassette Tape No display. While in other than Timer REC mode,
press [STOP] key for 3 seconds or
press [STOP] key of the Remote
Controller for 3 seconds in VHS
mode.
7.2.3. (VHS) Service Modes
<Service Mode Setting>
Set OPERATION SELECT to VHS.
When power is OFF, press [STOP] and [EJECT] keys simultaneously for 3 seconds to into Service Mode.
In Service Mode, press [STOP] and [EJECT] keys simultaneously to add Service Number.
7.2.3.1. (VHS) Service Mode and Service Data at a glance
Service
Number
Contents Contents of Indication on minute Contents of Indication on second Remarks
0 Indication for the
inner data of
IC6001
VHS mode
(Real time)
Process number
(Real time)
VHS mode Management number of the
processing during mechanism
shifting
1 Indication for the
inner data of
IC6001
Starting / finishing edges detecting
data
(Real time)
Data of receiving key (Real time)
00: Both starting / finishing edges
have not been
01: Starting edge is detecting now
02: Finishing edge is detecting now
03: Both starting / finishing edges
are detecting now
Indicate the receiving code when the
key of VHS or remote controller
being operated.
27
DMR-EZ47VP / DMR-EZ475VP
