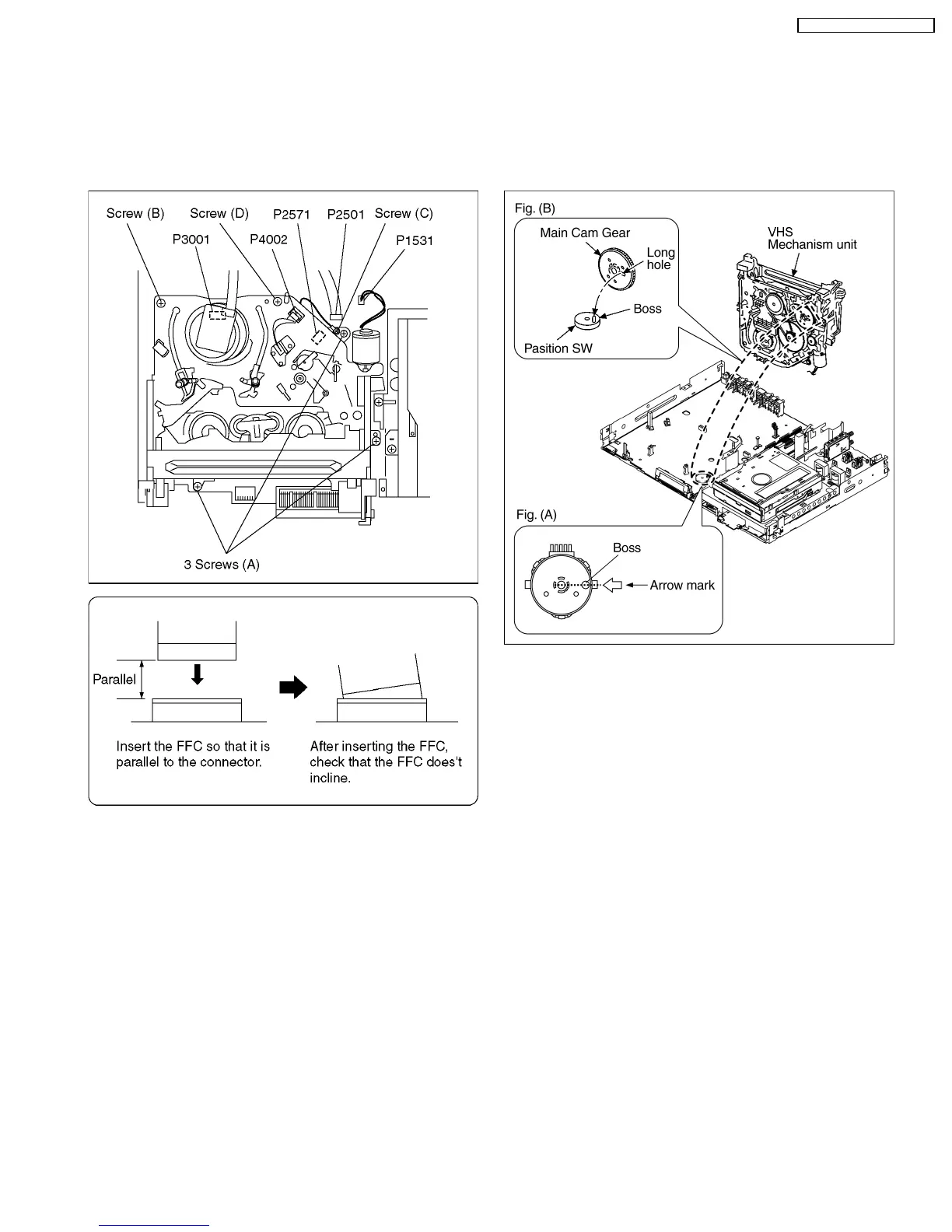

9.11. VHS Mechanism Unit
1. Disconnect 3 Connectors (P1531, P2501 and P4002).
2. Remove 3 Screws (A), Screw (B) , Screw (C) and Screw
(D).
3. Lift up VHS Mechanism Unit perpendicularly so to
disconnect Connectors (P2571 and P3001).
Note:
Pay attention to stiff connections of P2571 and P3001,
when removing VHS Mechanism Unit.
9.11.1. Caution for attaching VHS
Mechanism Unit
1. Because Position SW should be set to "Eject Position",
refer to fig.(A) and set the position switch so that the boss
and arrow mark come on a straight line.
2. Attach VHS Mechanism Unit so that Boss of Position SW is
put into long hole of Main Cam Gear, refer to Fig. (B).
41
DMR-EZ47VP / DMR-EZ475VP
