Panasonic DMR-EZ47VP

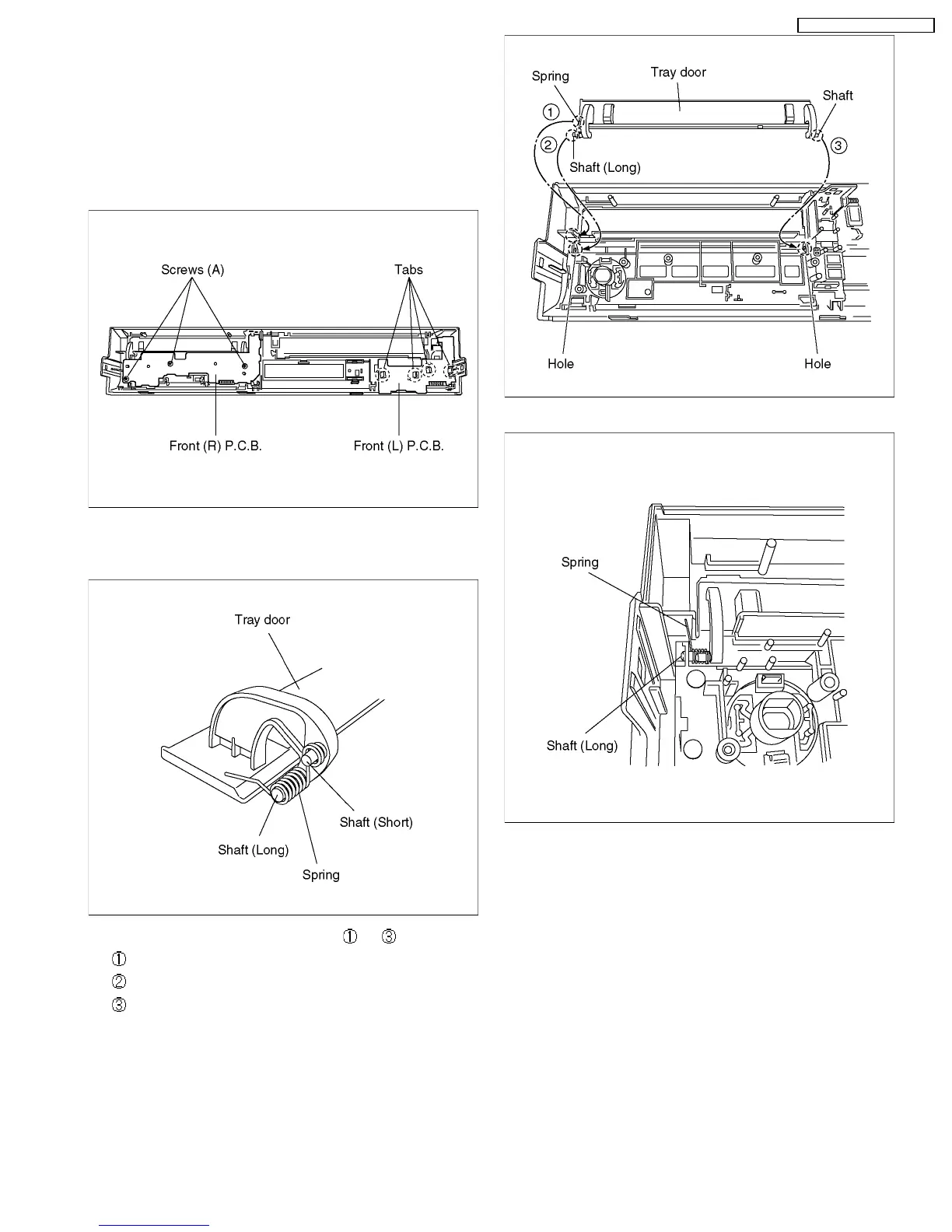

9.6. Front (L) P.C.B. & Front (R)
P.C.B.
9.6.1. Front (L) P.C.B.
1. Remove 4 tabs to remove Front (L) P.C.B..
9.6.2. Front (R) P.C.B.
1. Remove 3 screws (A) and tab to remove Front (R) P.C.B..
9.6.3. How to assemble Tray door ass’y
1. Attach Blinder spling to Tray door ass’y.
2. Attach Tray door ass’y in order from to .
: Put the Brinder spring on the front panel.
: Insert the shaft in the hole.
: Insert the shaft in the hole.
3. Confirm the Brinder spring is attached as following.
37
DMR-EZ47VP / DMR-EZ475VP
