9.6.4. Assembly of Blinder Panel and
Blinder Spring

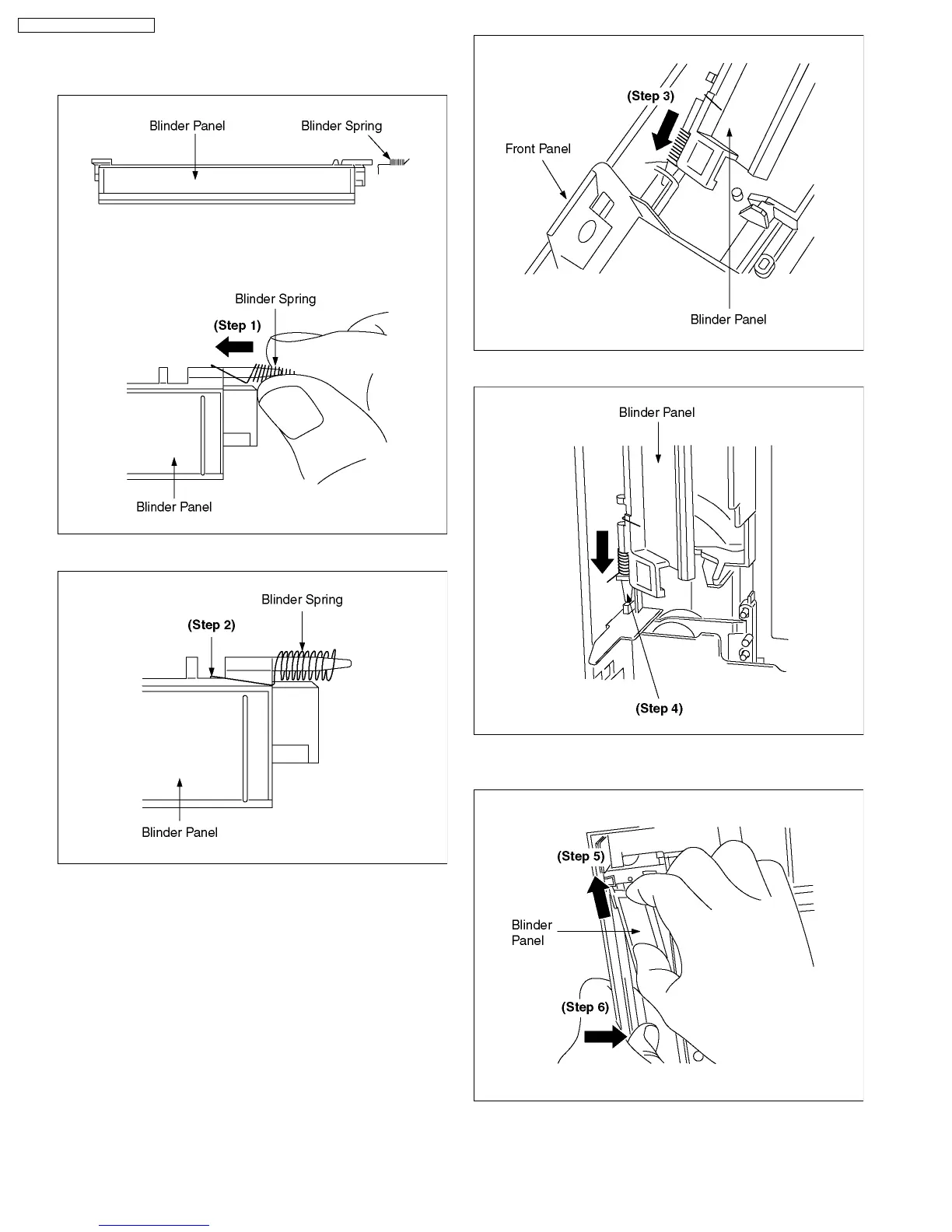

Step 1 : Insert Blinder Spring into shaft of Blinder Panel.
Step 2 : Hook Blinder Spring to bottom of the shaft.
Step 3 : Slide Blinder Panel into shaft hole of Front Panel.
Step 4 : Slide down Blinder Panel to touch the shaft on top of
the rib.
Step 5 : Push shaft into shaft hole.
Step 6 : Press centre of Blinder Panel and bow down.
