Panasonic DMR-EZ47VP

13.2. Main P.C.B. 13.2.1. Main P.C.B. (1/4 Section)
1
A B C D
2 3 4 5

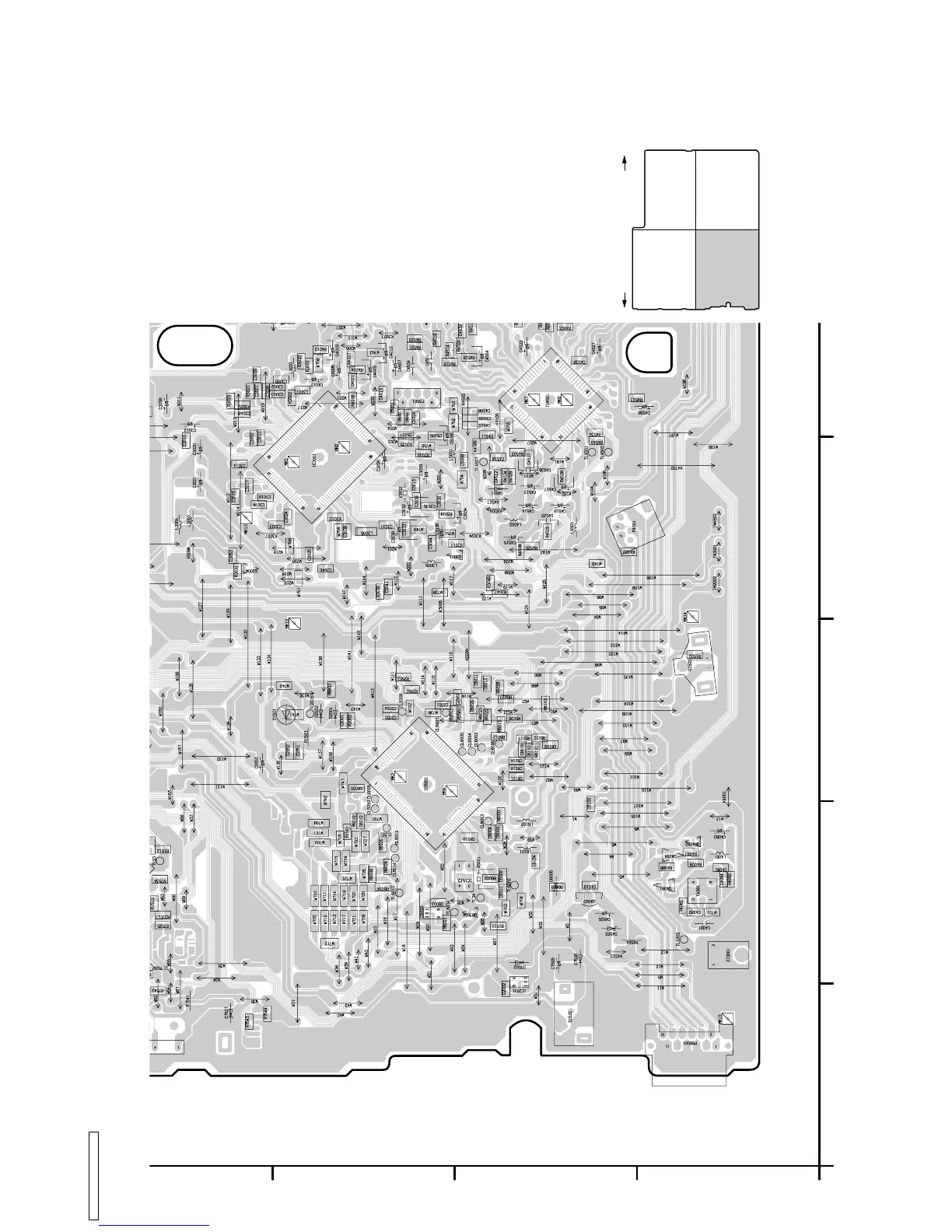

DMR-EZ47VP/EZ475VP Main P.C.B. (VEP06G37A) (1/4 Section)
(REAR)
(FRONT)
Location Map
1/4 2/4 3/4 4/4
DMR-EZ47VP / DMR-EZ475VP
90
