Panasonic DMR-EZ47VP

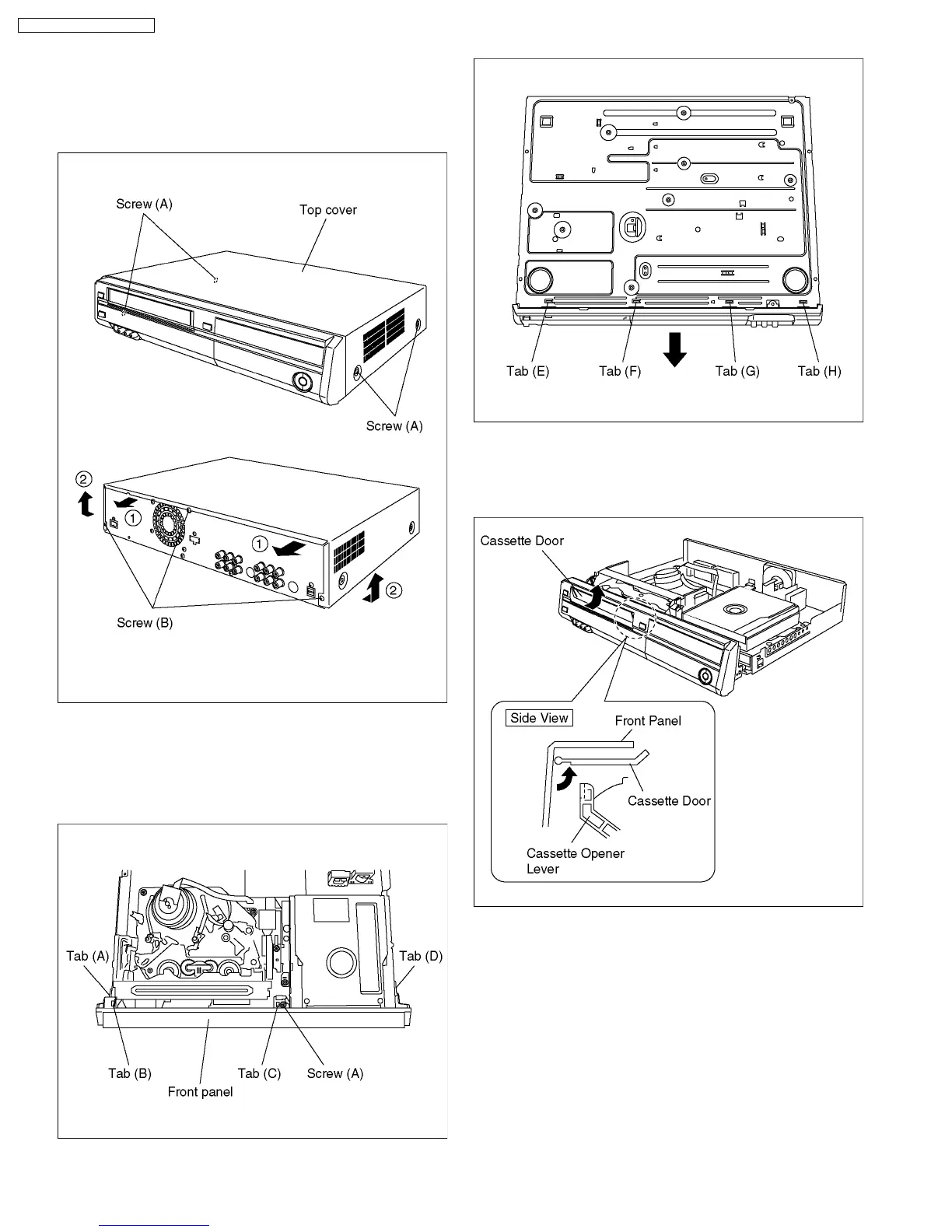

9.4. Top cover
1. Remove the 4 screws (A) and 3 screws (B).
2. Slide Top cover rearward and open the both ends at rear
side of the Top cover a little and lift the Top cover in the
direction of the arrows.
9.5. Front Panel
1. Remove one screw (A).
2. Unlock 4 tabs in (A) - (D) turn.
Pull with the front panel in the direction of your side.
3. Make the unit turn inside out, push the tabs (E) - (H) by (-)
screwdriver while pulling Front panel in the direction of
arrow.
Note:
When attaching Front Panel, in order to hook Cassette
Door Opener Lever to Cassette Door, push up cassette
door in the direction of arrow and insert a front panel.
