Panasonic DMR-EZ47VP

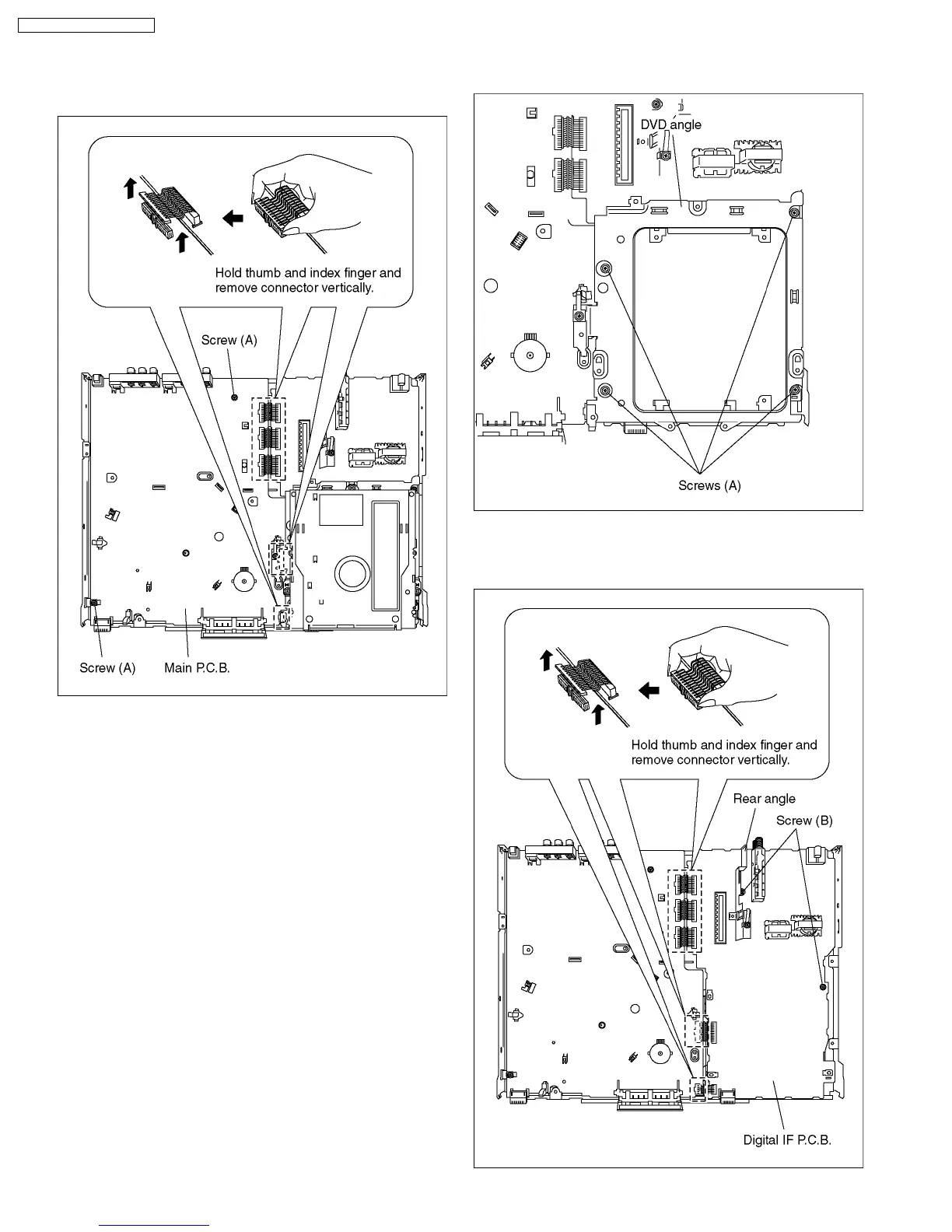

9.12. Main P.C.B.
1. Disconnect 4 Connectors.
2. Remove 2 Screws (A) and remove Main P.C.B.
9.13. Digital I/F P.C.B.
1. Remove 4 Screws (A) to remove DVD angle.
2. Disconnect 4 Connectors.
3. Remove the Screw (B) to remove Digital I/F P.C.B. after
removed Rear angle.
42
DMR-EZ47VP / DMR-EZ475VP
