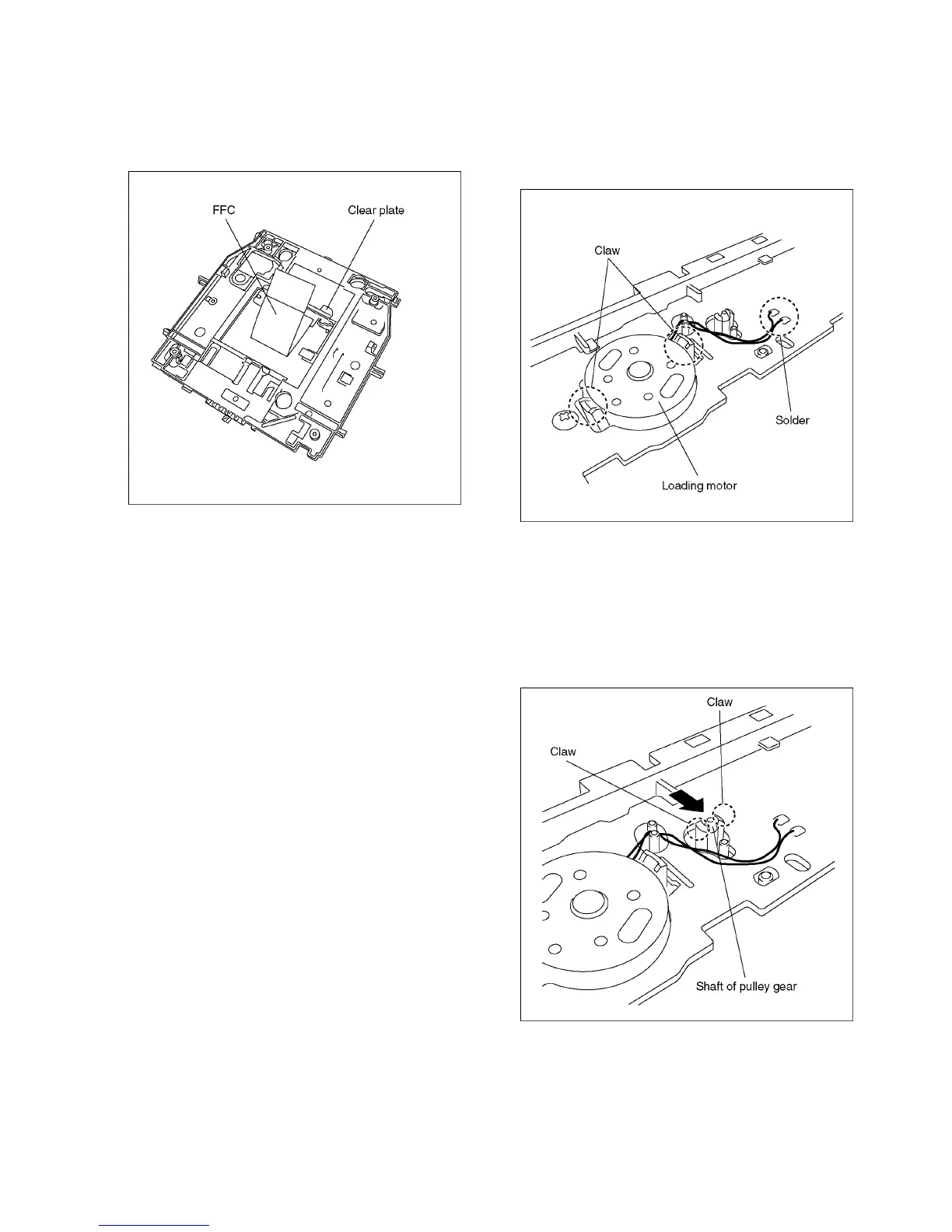

9.2.3. FFC
1. Procedures 1-7 of “9.2.1. Disassembling of Traverse
Base Ass’y, Drive P.C.B. and SW P.C.B.” is performed in
this section.
2. The Sheet is removed and FFC is disconnected.
9.2.4. Slide cam
1. Procedures 1-9 of “9.2.1. Disassembling of Traverse
Base Ass’y, Drive P.C.B. and SW P.C.B.” is performed in
this section.
9.2.5. Frame
1. Procedures 1,8 of “9.2.1. Disassembling of Traverse
Base Ass’y, Drive P.C.B. and SW P.C.B.” is performed in
this section.
9.2.6. Loading motor
1. Procedures 1-11 of “9.2.1. Disassembling of Traverse
Base Ass’y, Drive P.C.B. and SW P.C.B.” is performed in
this section.
2. The 2 soldering parts are removed and Claws are
expanded, and the Loading motor is removed.
9.2.7. Pulley gear, Drive gear and Middle
gear
1. Procedures 1-10 of “9.2.1. Disassembling of Traverse
Base Ass’y, Drive P.C.B. and SW P.C.B.” is performed in
this section. It is OK that Screw (D) is being screwed.
2. The claws back side are extended and Pulley gear shaft
is pushed and removed.
