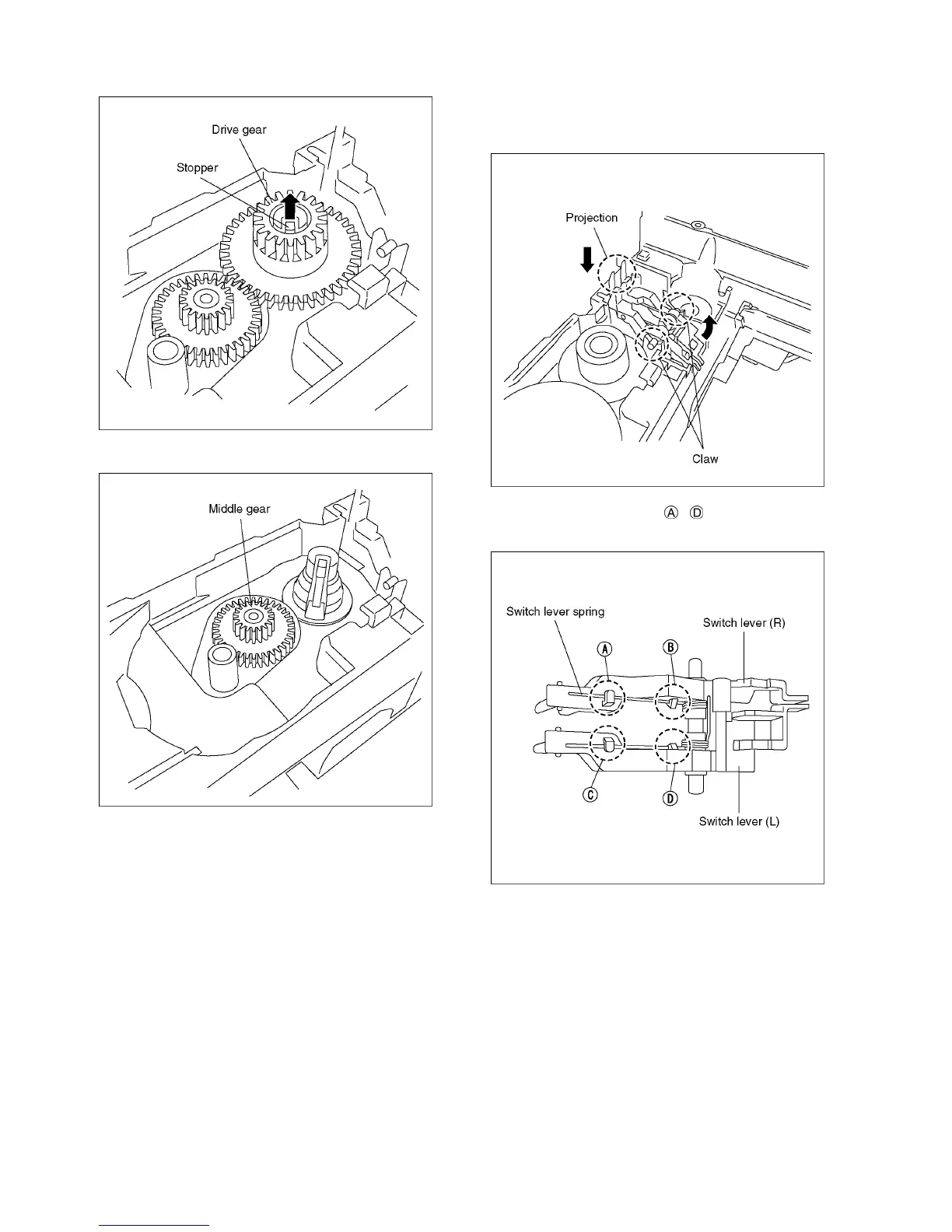

3. The stopper is pushed inside and Drive gear is pulled out.
4. The Middle gear is removed.
Note;
The Belt is set not to unfastened when installed.
9.2.8. Switch lever
1. “9.2.4. Slide cam” is performed.
2. The projection of Switch lever is pushed while lifting rear-
ward, and Switch lever is removed from Claws.
3. The 4 claws is removed in - order, and Switch lever
(L), (R) are detached and Switch lever is removed.
