Connection
to
a
television
.
|

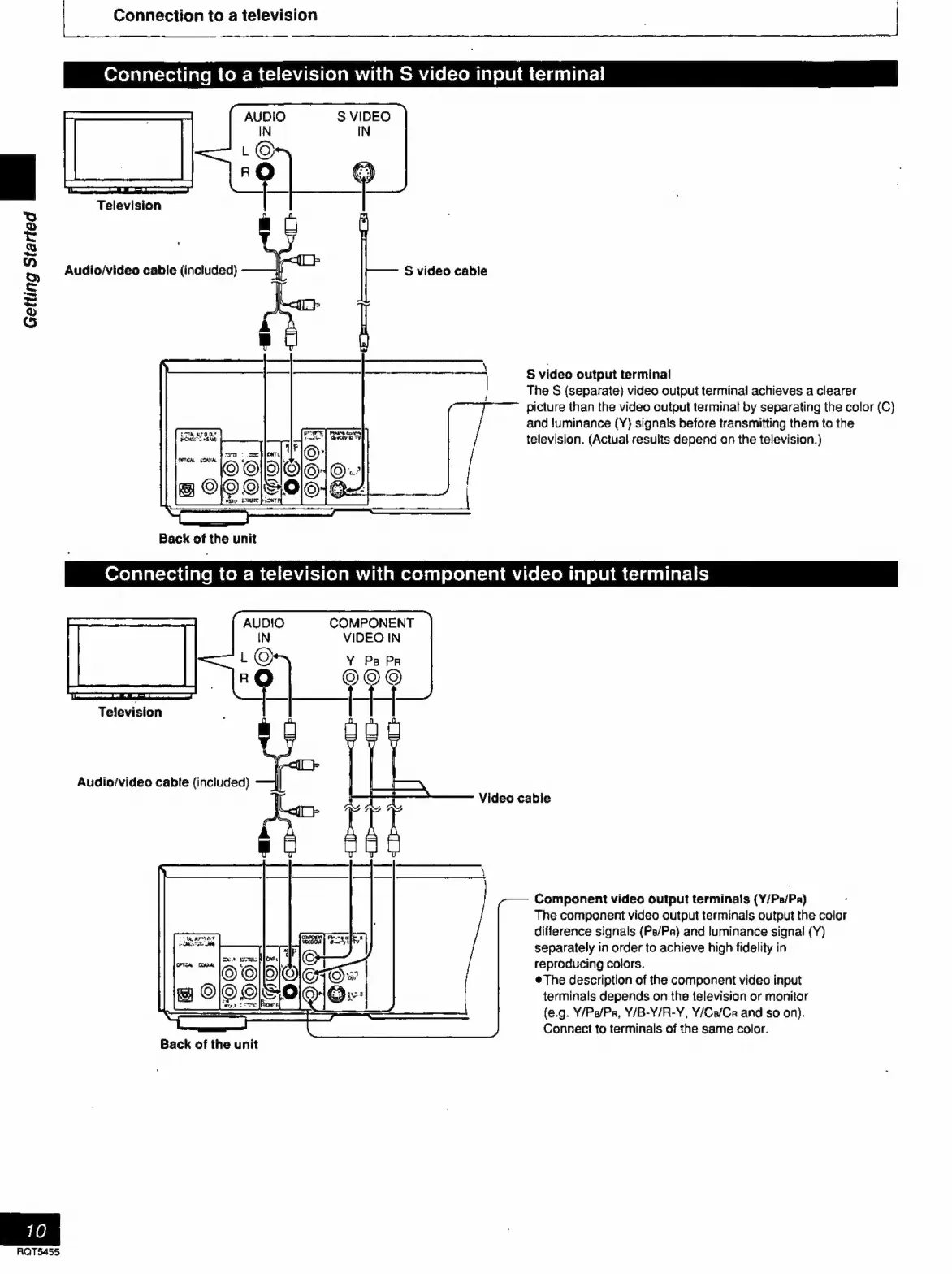

Connecting
to
a
television
with
S
video
input
terminal
oe
S
i
ips
6
2
Television
Audio/video
cable
(included)
tt
S
video
cable
Getting
Started
oe
S
video
output
terminal
The
S
(separate)
video
output
terminal
achieves
a
clearer
than
the
video
output
terminal
by
separating
the
color
(C)
and
luminance
(Y)
signals
before
transmitting
them
to
the
television.
(Actual
results
depend
on
the
television.)
Back
of
the
unit
Connecting
to
a
television
with
component
video
input
terminals
AUDIO
COMPONENT
IN
VIDEO
IN
L©
X
Pp
A
'
R
O)
(0)
(O
Television
9
|
ia
>]
Audio/video
cable
(included)
Video
cable
Component
video
output
terminals
(Y/Ps/Pa)
The
component
video
output
terminals
output
the
color
difference
signals
{Pe/Pr)
and
luminance
signal
(Y)
separately
in
order
to
achieve
high
fidelity
in
reproducing
colors.
The
description
of
the
component
video
input
terminals
depends
on
the
television
or
monitor
(e.g.
Y/Pa/Pr,
Y/B-Y/R-Y,
Y/Ca/Cr
and
so
on).
Connect
to
terminals
of
the
same
color.
Back
of
the
unit
RQTS455
