Panasonic E3 - Outdoor Unit Control PCB

4-8
44

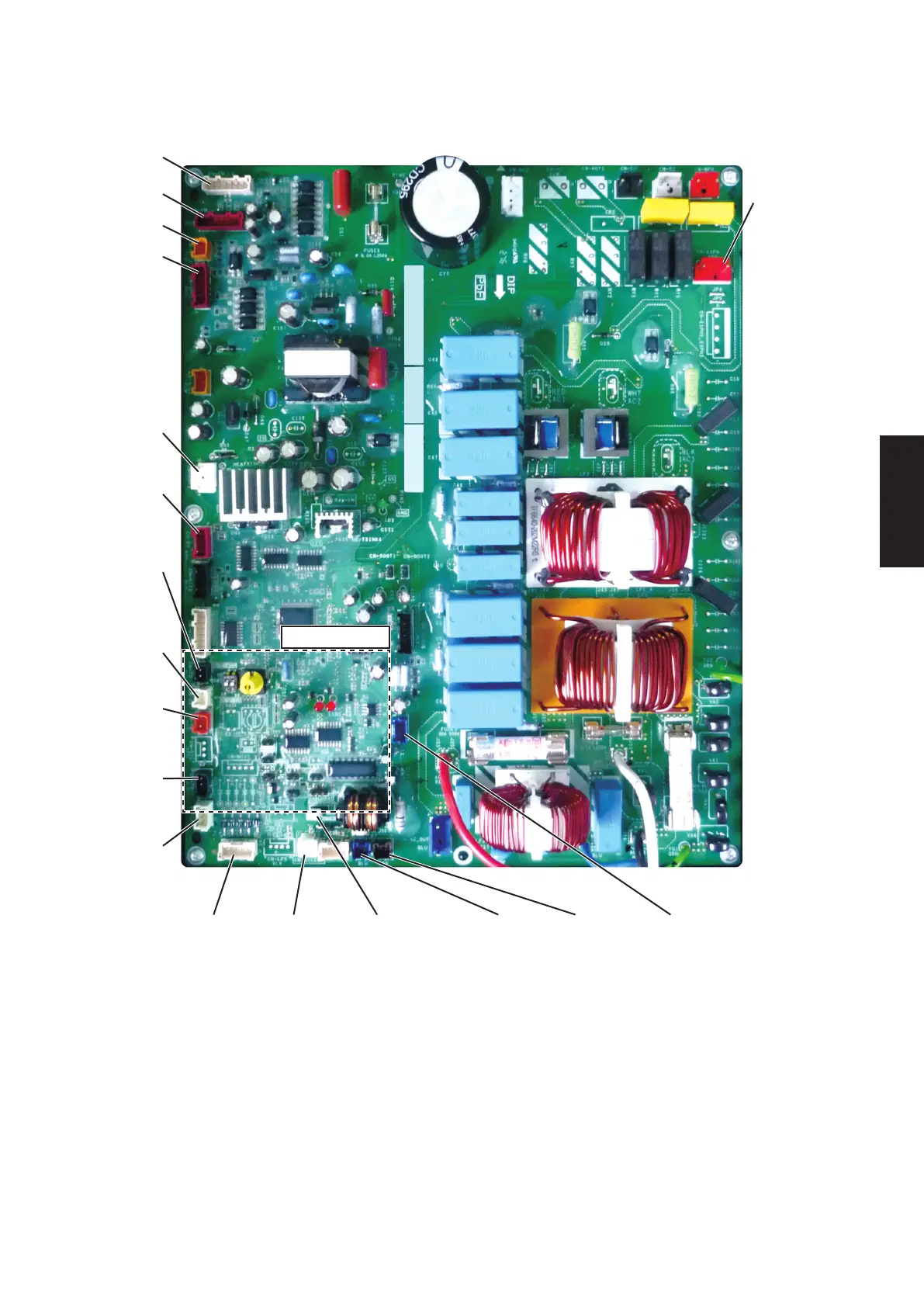

4-2. Outdoor Unit Control PCB
U-200PZH2E8 (ACXA73-3030*)
4WAY Valve
(CN-HOT2)
CN-RY
Suction
temp
(CN-TS)
Outdoor air
temp
(CN-TO)
Intermediate
temperature
sensor in heat
exchanger
(CN-C2)
MOV plug
(CN-MOV1)
SILENT
(CN-SILENT)
OC plug
(CN-OC)
EMG plug
(CN-EMG)
RC plug
(CN-RC)
TERMINAL
(CN-TERMINAL)
Comp
discharge
temp
(CN-TD)
Inlet
temperature
sensor in heat
exchanger
(CN-C1)
CN-FM_LO
CN-FM_UP
CN-OPT2
CN-OPT1
High-pressure
switch plug
(CN-63PH)
See next page
