4-10
44

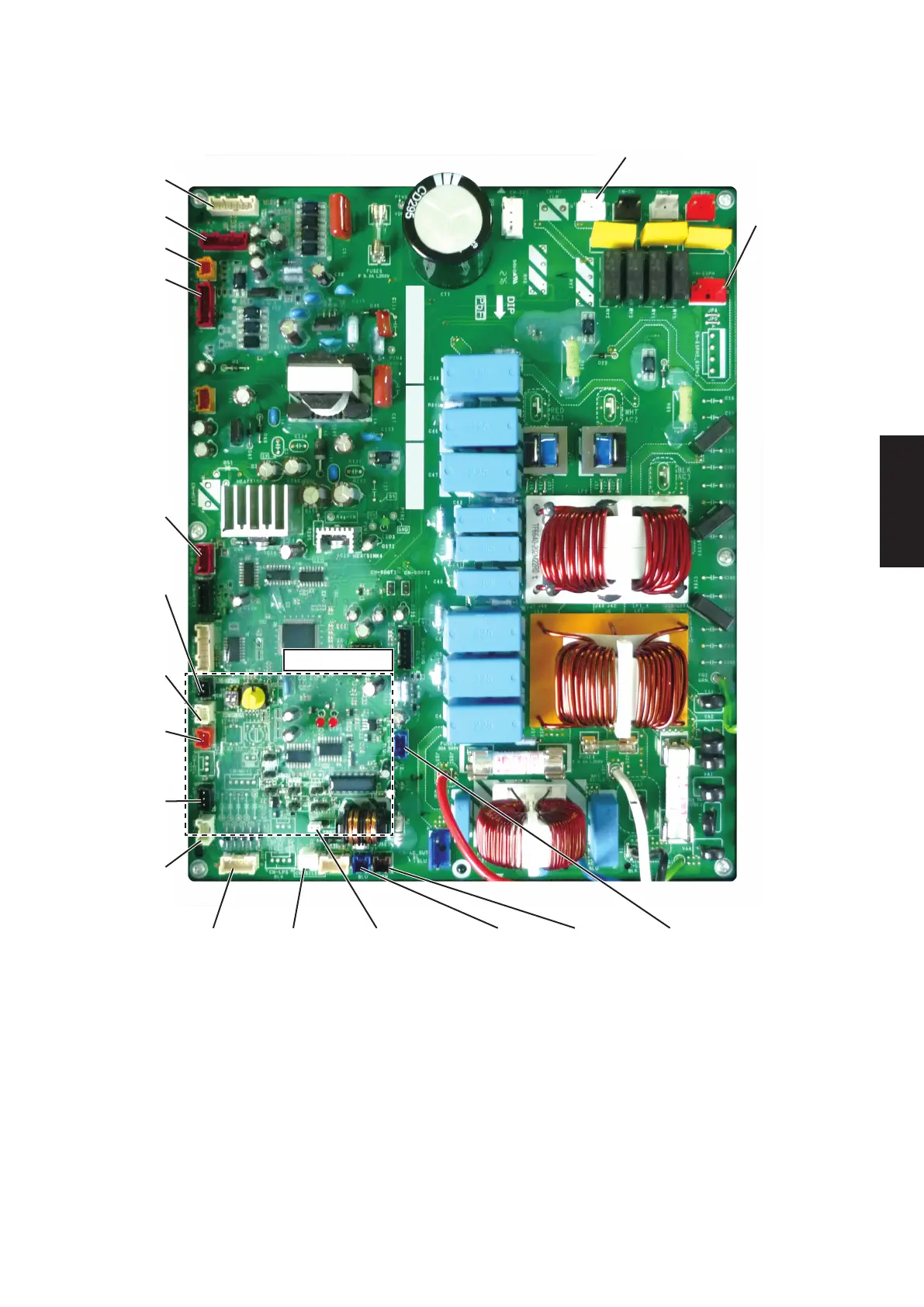

U-250PZH2E8 (ACXA73-3028*)
CN-RY
Suction
temp
(CN-TS)
Outdoor air
temp
(CN-TO)
Intermediate
temperature
sensor in heat
exchanger
(CN-C2)
MOV plug
(CN-MOV1)
SILENT
(CN-SILENT)
OC plug
(CN-OC)
EMG plug
(CN-EMG)
RC plug
(CN-RC)
TERMINAL
(CN-TERMINAL)
Comp
discharge
temp
(CN-TD)
Inlet
temperature
sensor in heat
exchanger
(CN-C1)
CN-FM_LO
CN-FM_UP
CN-OPT2
CN-OPT1
High-pressure
switch plug
(CN-63PH)
4WAY Valve
(CN-HOT1)
See next page
60B኱ὒᕞࢩࣥࢢࣝኳᇙ60LQGE
U-200PZH2E8 (ACXA73-3030*)
LED2LED1SW1 SW2
A.ADD CHKSTOP
TEST
MODE
PUMPDOWN
RUN
