Panasonic EP3202-U1 - Page 30

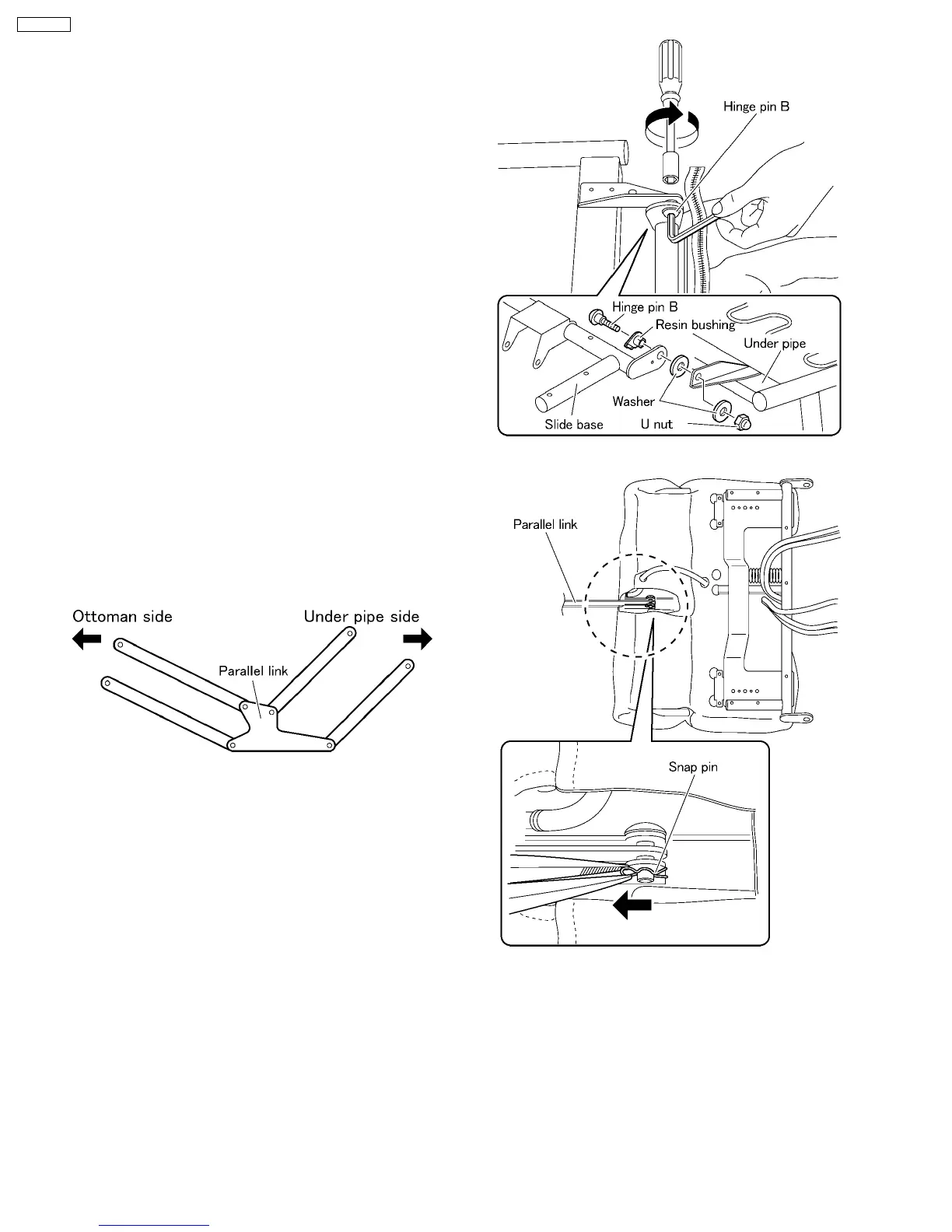

9. Take off the left/right Hinge pin Bs, Washers, and U nuts,
and you can take off the Ottoman.
10. Pull out the Snap pin from the Ottoman and remove the
Parallel link.
Caution when installing
Be careful of the directions when installing the Parallel
link.
30
EP3203-U1
