10.13.10. Removing the Intensity gear block
*Follow the procedure 10.13.4 Removing the Width sensor 1-3.
*Follow the procedure 10.13.10 Removing the Up/down gear block 1-3.

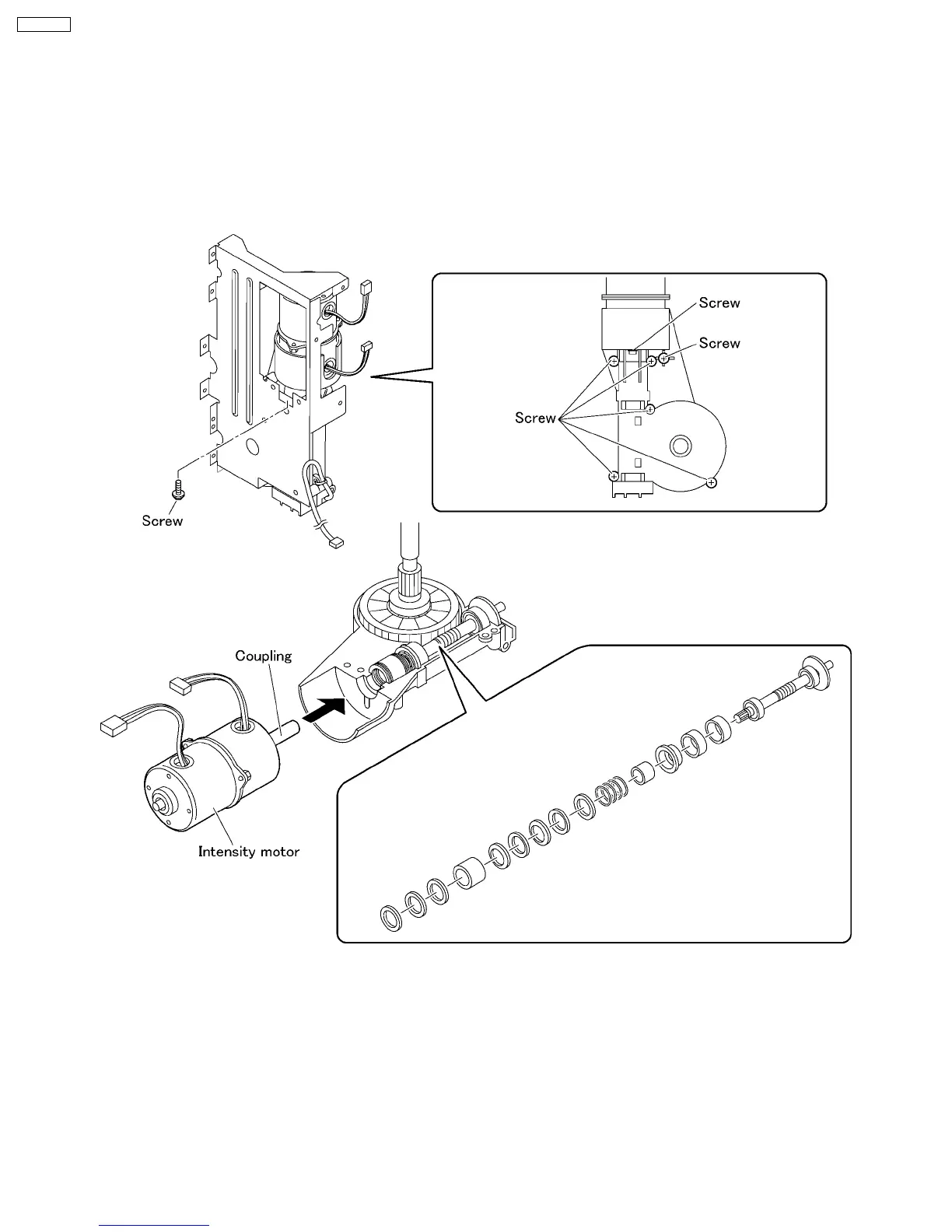

1. Unscrew five screws of the Intensity gear box and the Intensity driving installation plate.
2. Unscrew two screws of the Intensity gear box and the motor, and one screw of the Intensity gear box A.B.
Caution when installing
It would be easy if you rotate the Intensity worm shaft by hand when inserting the Intensity motor shaft to the coupling.
