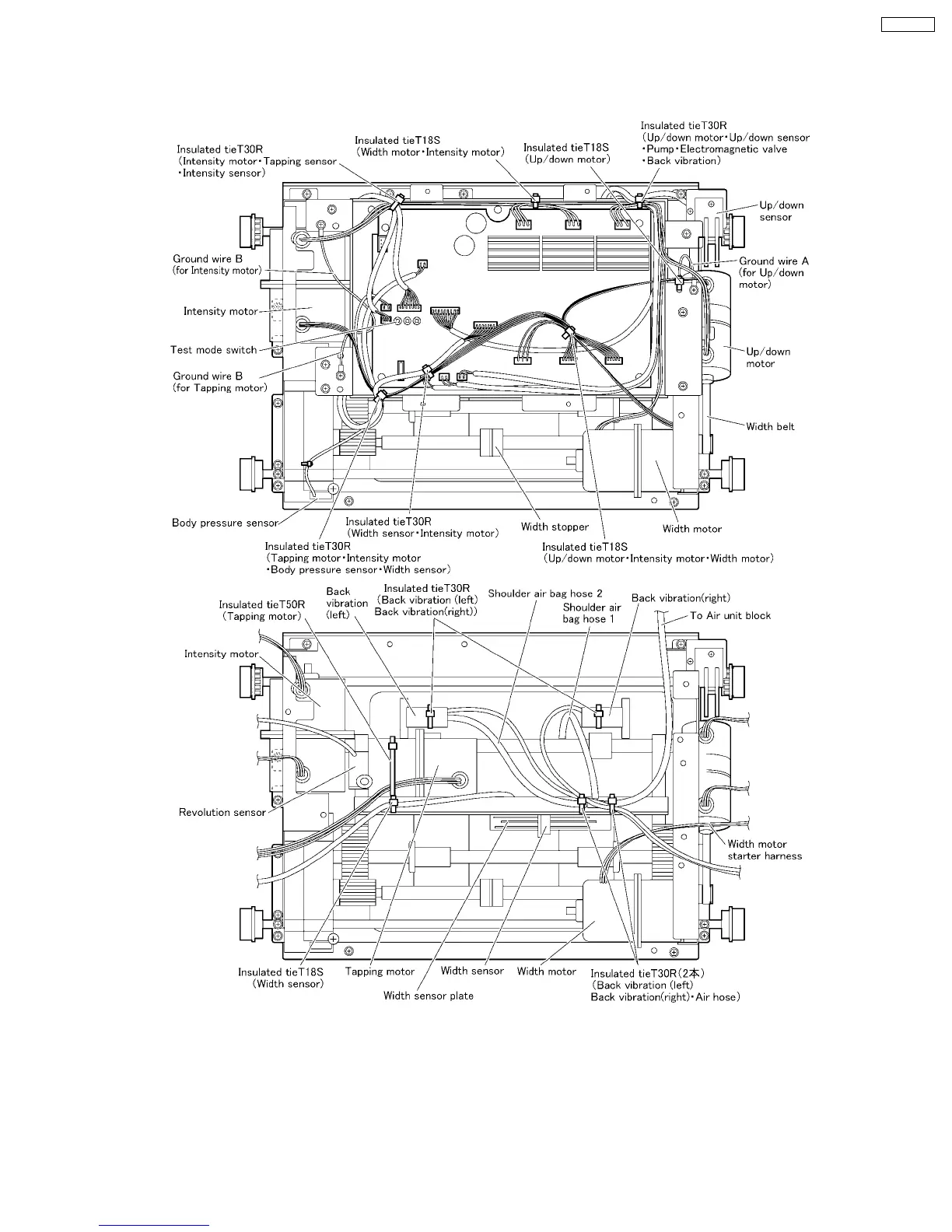

10.12. Lead wires of Massage mechanism block
Refer to the following figure for the fixing of the Main PCB, motors, sensors, parts, and Insulated ties.
43
EP3203-U1
