Follow the procedure 10.4 Removing the Under cover and
10.4 Removing the Under box, Under box cover.
1. Turn on the On/off switch of the Controller and push the
Squeeze button.
2. Disconnect the Hoses with the air flow and the operating
voltages of the Electromagnetic valves.
There should be about DC90V between the
Connectors(CN106) of the Sub OCB.
3. There should be the following resistance between the
terminals of each Electromagnetic valves:
·
3-way electromagnetic valves: about 1.8- 2.1kΩ
·
2-way electromagnetic valves: about 1.3-1.5kΩ

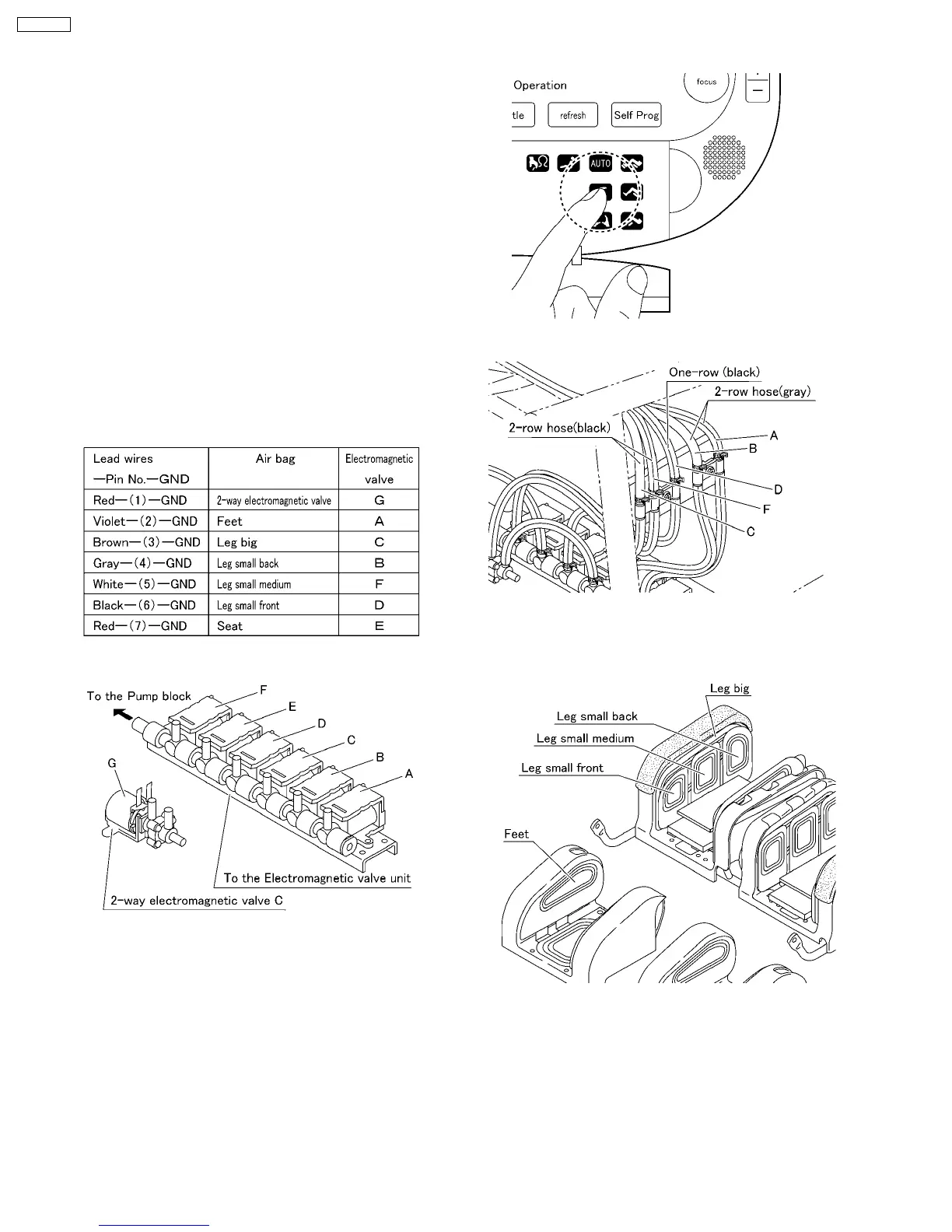

12.4. Checking Electromagnetic valves
58
EP3203-U1
