Panasonic FPS Series

High-Speed Counter and Pulse Output
FPΣ User's Manual
114
System variables for memory areas used:
Description System variable Address
0 sys_diHscChannel0ElapsedValue DDT90044
1 sys_diHscChannel1ElapsedValue DDT90048
2 sys_diHscChannel2ElapsedValue DDT90200
High-speed counter: elapsed
value of channel
3 sys_diHscChannel3ElapsedValue DDT90204
REFERENCE
Please refer to the FPWIN Pro online help for programming examples.

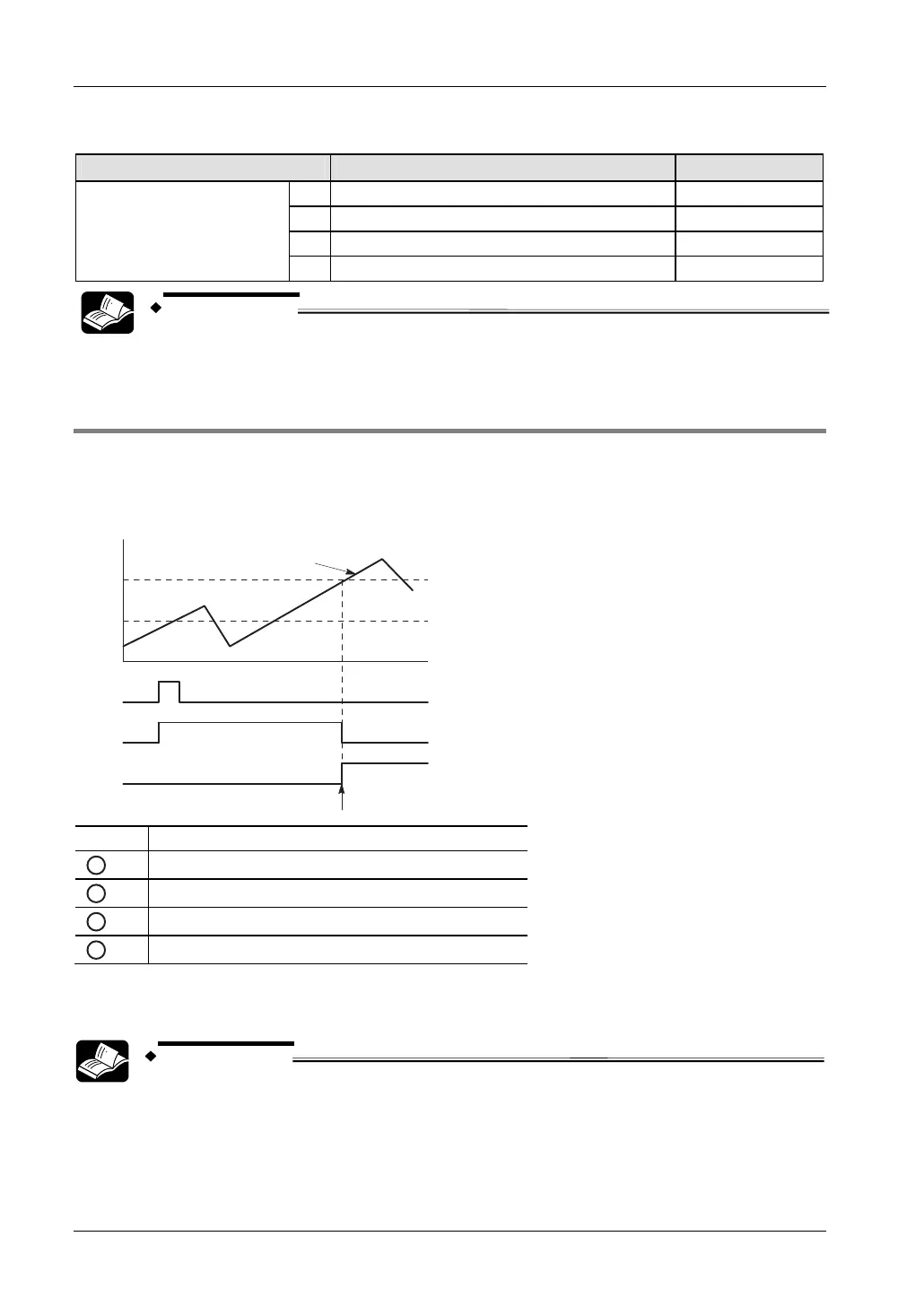

7.3.4.3 F166_HighSpeedCounter_Set, Target Value Match ON
If the elapsed value of the high-speed counter matches the target value, an interrupt process
immediately turns the specified output to TRUE.
Characteristics of target value match ON control
10000
0
1
2
4
3
10000 Target value
1
Elapsed value of high-speed counter
2
Execution condition
3
High-speed counter control flag
4
PLC output
The PLC output turns to TRUE when the elapsed value matches the target value. In addition, the high-speed counter
control flag turns to FALSE and the instruction is deactivated.
REFERENCE
Please refer to the FPWIN Pro online help for details and a programming
example.
