Service Notes
TH-37PA20U TH-42PA20U (Service Hint SH-B19-04-06)
If the DG board is defective, order a complete tuner block
assembly (it contains DG board, H board, Tuners and wire
harnesses
Part #: TXAUX01QCSU), instead of just ordering the
DG board.
The new replacement DG board has a larger 6-pin connector at DG18 and is
incompatible with the original DG board, which had a small connector.
A running change to the DG board production was made. The size of the DG18
connector was changed and some software changes were made too. Because of
these, a new replacement DG board is not compatible with the existing G18 wire
harness and the interconnected H board software (To operate a new DG board
software, a new matched H board is necessary).

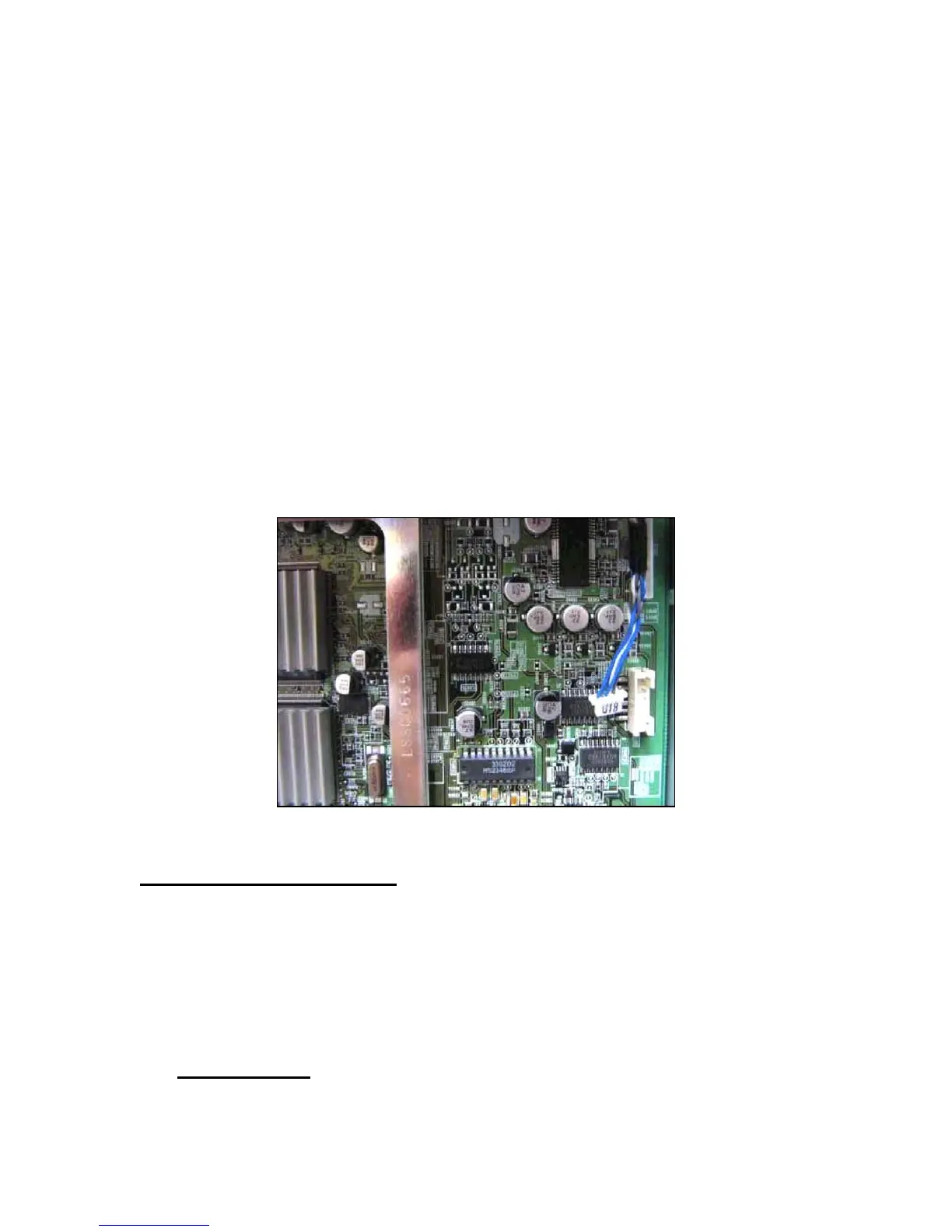

Figure 46 - Original G18 wire harness and the incompatible DG board with the larger
connector DG18.
Order Part #: TXAUX01QCSU
Order and install a complete tuner block assembly (contains DG board, H board,
Tuners and wire harnesses) whenever a DG board is defective and needs to be
replaced.
After replacing the DG board, if some adjustments are necessary, refer to the
service manual.
Note: Replacement of the new DG/Tuner block assembly requires Panasonic
Hotline authorization.
Call
1-800-743-2335 for authorization. The defective (original) DG board (which
was removed) must be returned for recycling and DUD value credit.
107
