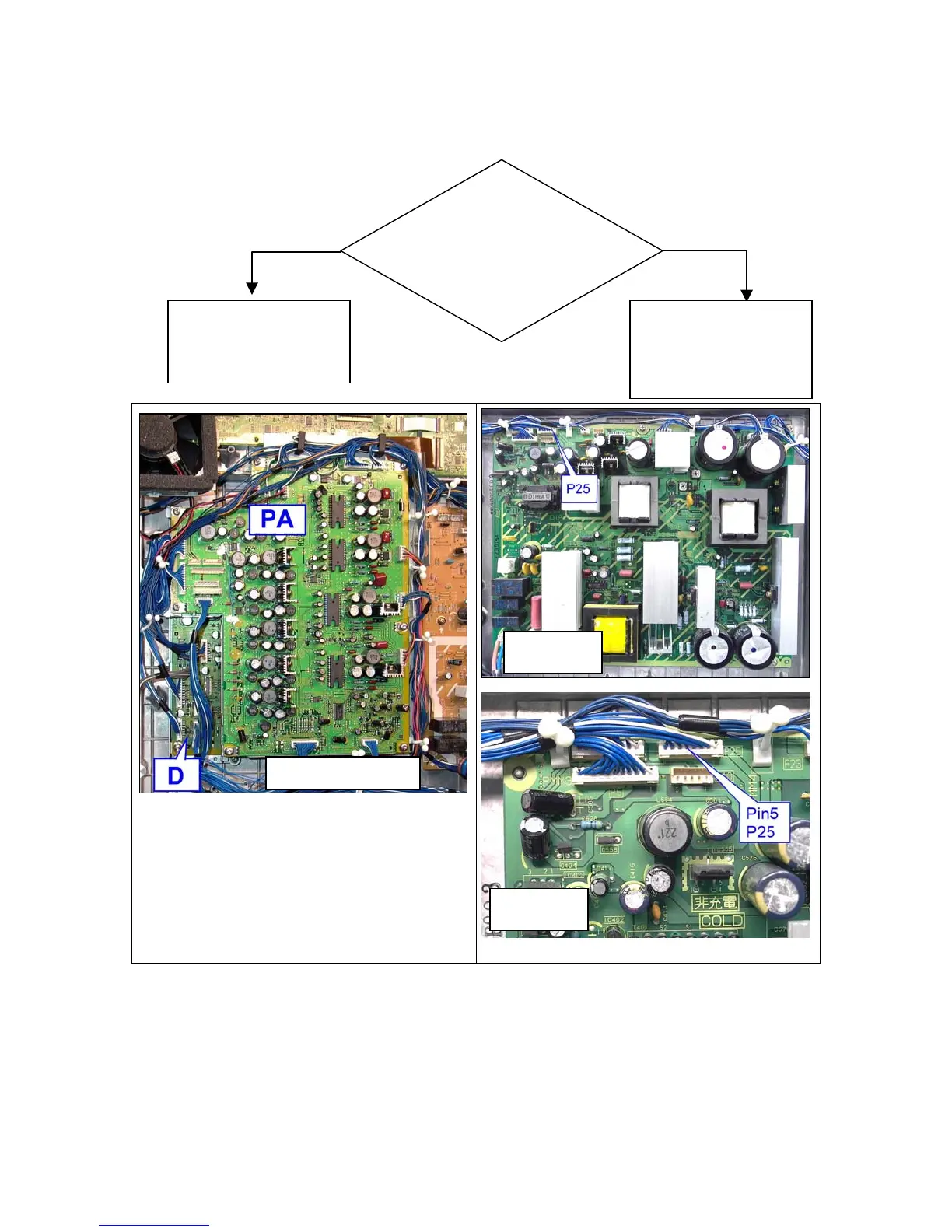

Power LED blinks 4 Times

No Yes

Replace the P

board

Replace the D

board

Is 5V present on

pin 5 of connector

P25 on the “P”

board?

P Board

P Board

D & PA Boards

59
