GPH7D (Onyx) Tuner Receiver
Onyx models have separate Tuner Receivers.
This receiver connects to the monitor using t
21” cables combined in one harness (P/N
K1V245L20001).
wo

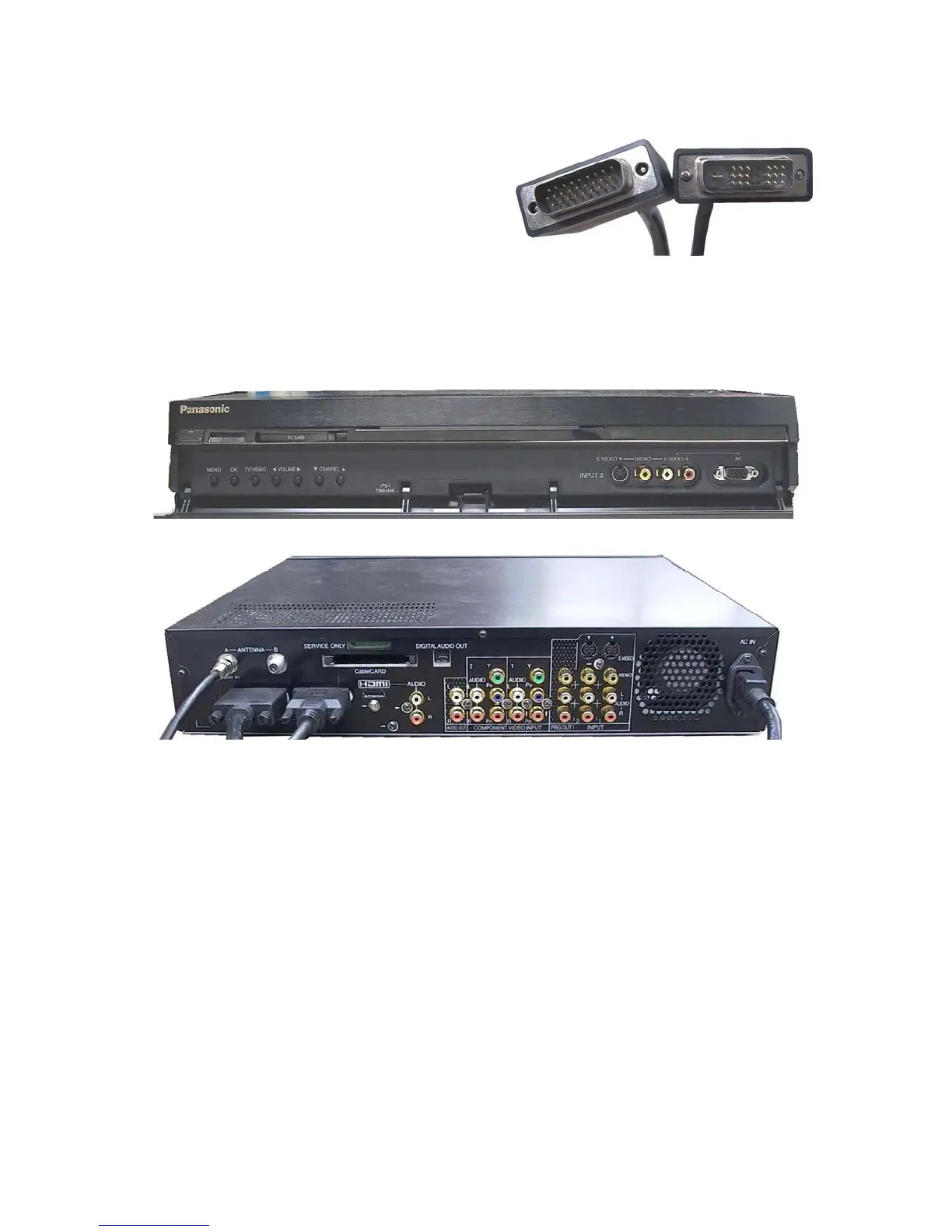

Figure 18 - Connecting Cables
All input and output connections are located on the receiver.
Figure 19 - Tuner Receiver
27
