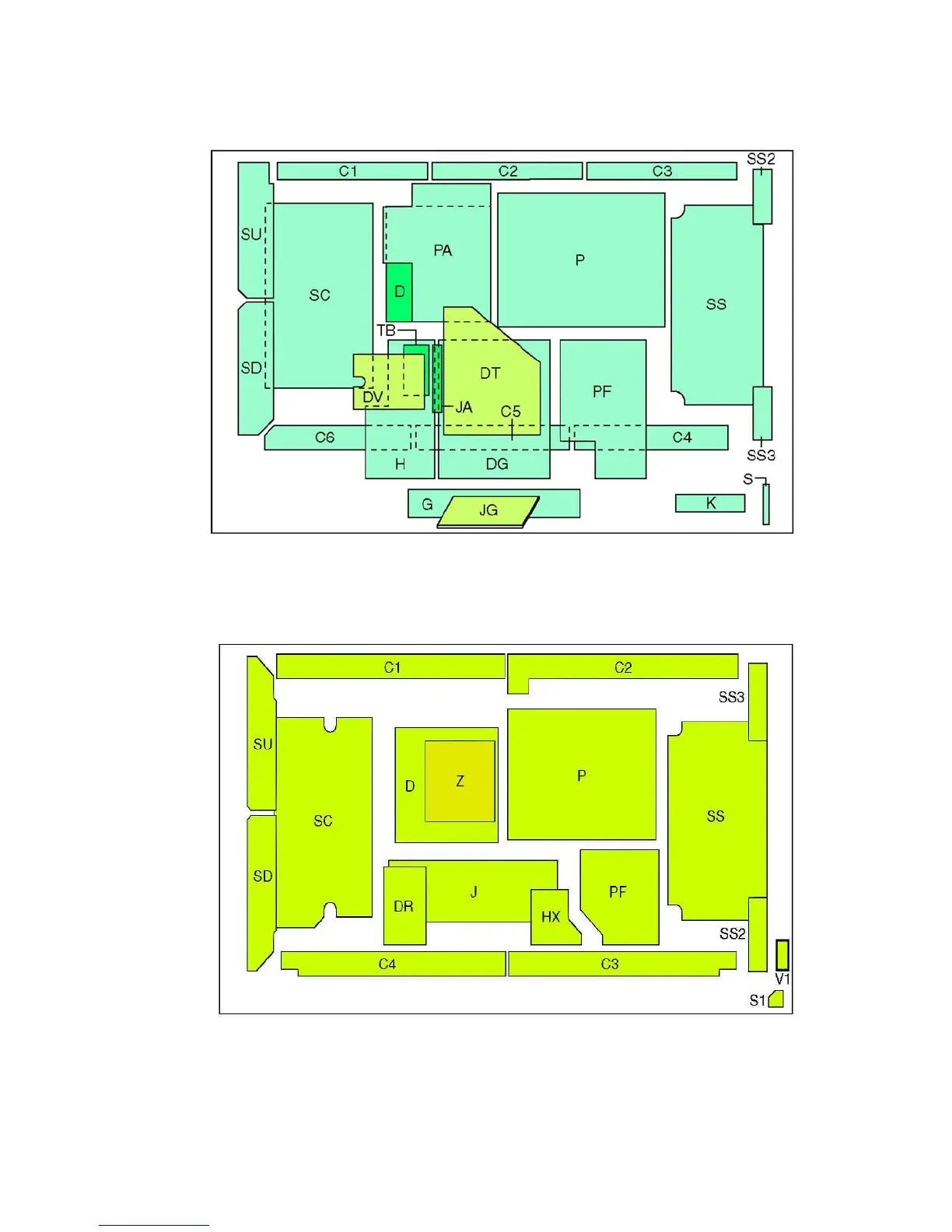

TH-50PX25U Boards Layout (GPH6DU)
Figure 3 - TH-50PX25U boards layout
TH-42XVS30 (Onyx) Boards Layout (GPH7D)
Figure 4 - TH-42XVS30 Board Layout
10
