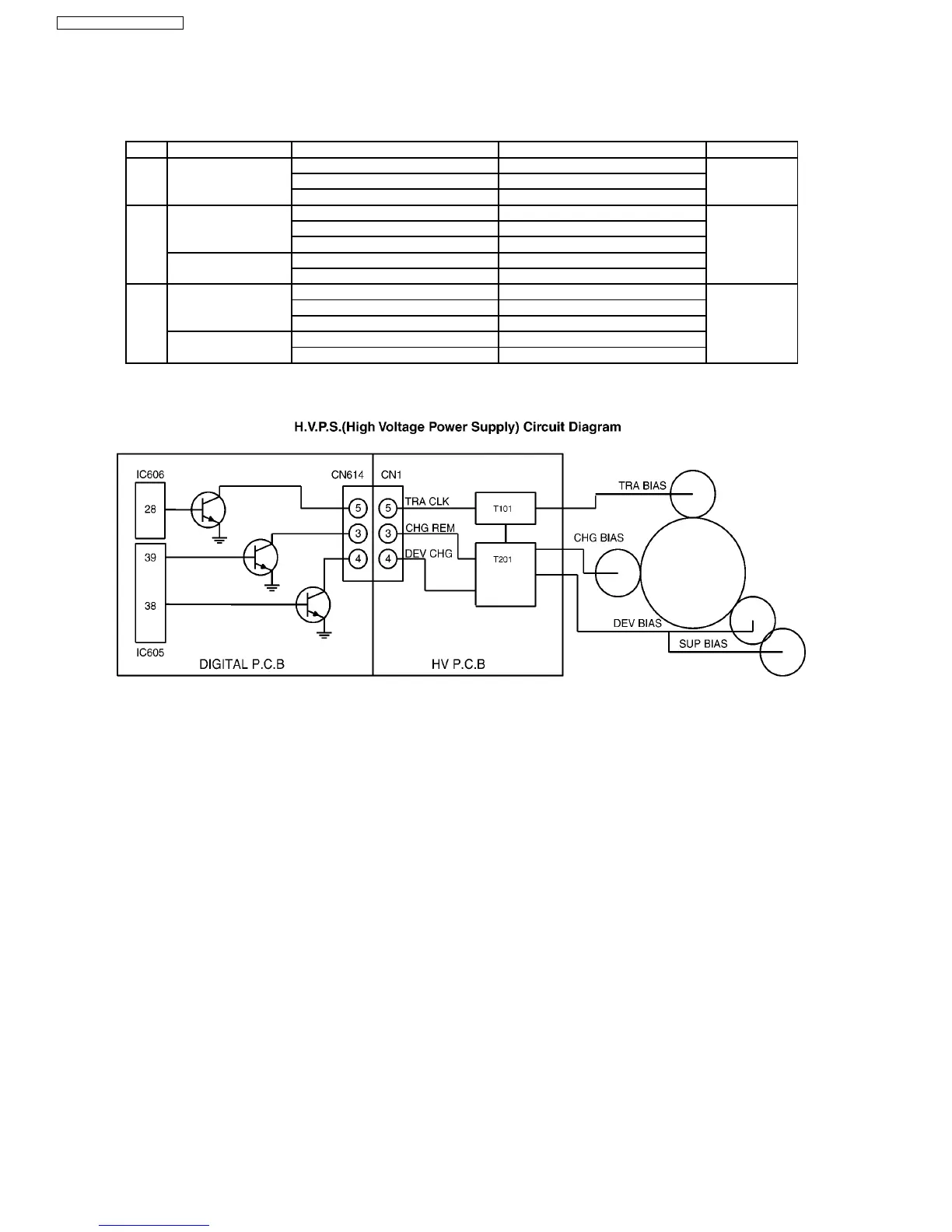

7.14. HVPS (High Voltage Power Supply) SECTION
7.14.1. HVPS SPECIFICATION
No Output voltage Item Specification Notes
1 Electrostatic Rate output voltage -1000±30V
Charge Impedance range 50M~1000MΩ
CHG BIAS Output format Constant voltage
2 Developing Rate output voltage -200±15V
DEV(-) BIAS Impedance range 10M~2000MΩ
Output format Constant voltage
Developing Rate output voltage +150+20V
DEV(+) BIAS Output format Constant voltage
3 Transfer Variable output current +4~25µA Output current
TRA(+) BIAS Output voltage +3500V Max. varies with the
Output format Variable Constant current rate printed.
Transfer Rate output voltage -1000±100V
TRA(-) BIAS Output format Constant voltage
DEV BIAS is output from one of the output terminals after the DEV CHG signal selects DEV(+) BIAS and DEV(-) BIAS.
TRA BIAS is output from one of the output terminals after the TRA CLK signal selects TRA(+) BIAS and TRA(-) BIAS.
