2.7 Connection of Extensions

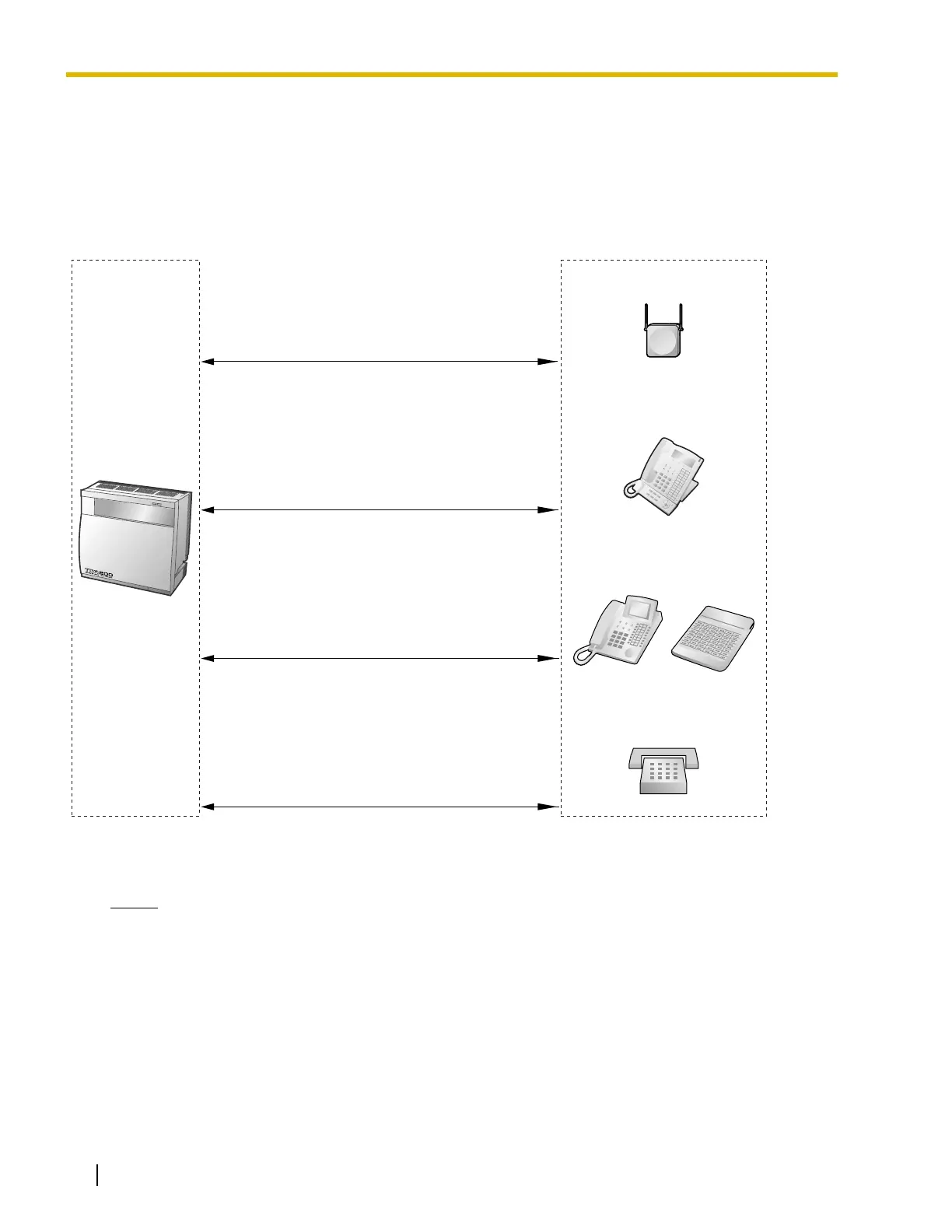

2.7.1 Maximum Cabling Distances of the Extension Wiring
(Twisted Cable)
Notice
The maximum cabling distance may vary depending on the conditions.
* The maximum cabling distance from the Hybrid IP-PBX is the same even when the KX-T7600 series
DPT is the master DPT on the Digital XDP connection.
Cable Maximum Distance
26 AWG: Under 500 m (1640 ft)
24 AWG: Under 720 m (2362 ft)
22 AWG: Under 830 m (2723 ft)
CAT 5: Under 720 m (2362 ft)
Cable Maximum Distance
26 AWG: Under 140 m (459 ft)
24 AWG: Under 229 m (751 ft)
22 AWG: Under 360 m (1181 ft)
CAT 5: Under 229 m (751 ft)
Cable Maximum Distance
26 AWG: Under 698 m (2289 ft)
24 AWG: Under 1128 m (3700 ft)
22 AWG: Under 1798 m (5897 ft)
CAT 5: Under 1128 m (3700 ft)
Cable Maximum Distance
26 AWG: Under 222 m (728 ft)
24 AWG: Under 347 m (1138 ft)
22 AWG: Under 500 m (1640 ft)
CAT 5: Under 347 m (1138 ft)
Other PT (DPT/APT)
and DSS Console
SLT
KX-T7600 Series
*
PT-interface CS

Panasonic KX-TDA100 KX-TDA200 Specifications

General

VoIP Compatibility	Yes
Voice Mail	Optional
ISDN Compatibility	Yes
Digital and Analog Support	Yes
Power Supply	AC 100-240V, 50/60Hz
Category	PBX
Model KX-TDA100 Initial CO lines	8
Model KX-TDA100 Maximum CO lines	32
Model KX-TDA100 Initial extensions	16
Model KX-TDA100 Maximum extensions	64
Model KX-TDA200 Maximum extensions	128
System Type	Hybrid IP-PBX
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)
Networking	Yes
Model KX-TDA100 IP extensions	64
Weight	10 kg
Model KX-TDA200 IP extensions	128
