Panasonic KX-TDA30

BRI1/BRI2 Card
To NT1
RJ45 (LINE 1)
RJ45 (LINE 2)

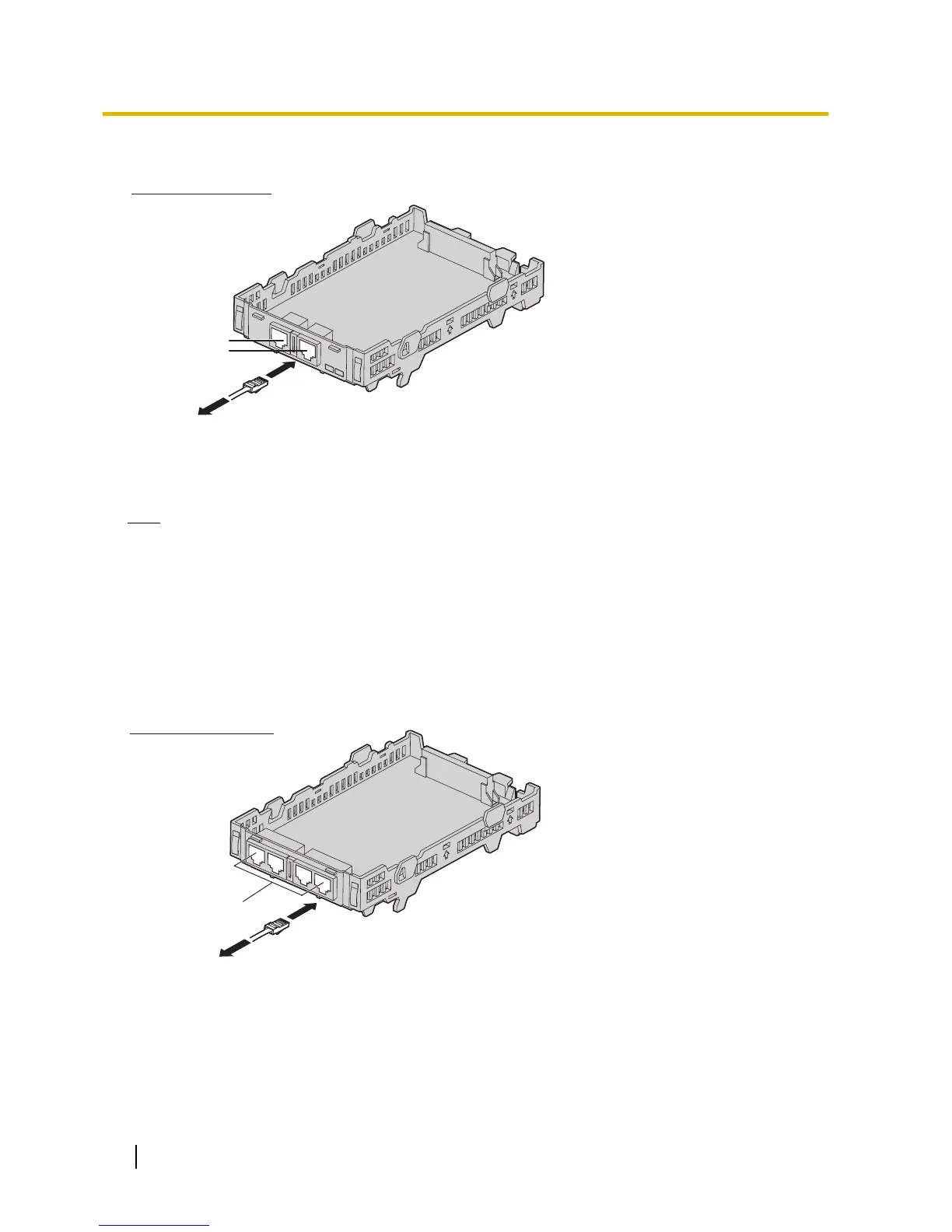

Example: BRI2 Card
Accessories (included): Extension Bolt ´ 1, Strap ´ 1
User-supplied (not included): RJ45 connector
Note
• Connect these optional service cards to
the trunk through an NT1; do not connect to the U interface of
the trunk directly.
• These optional service cards have 100 W of terminal resistance. For use in point to multi-point
connection, the card must be placed at the end of the bus.
2.5 Installing the Extension Cards (DLC4/DLC8/
SLC4/SLC8)
Example: DLC4 Card
To extension
RJ45
Accessories (included): Extension Bolt ´ 1, Strap ´ 1
User-supplied (not included): RJ45 connector or RJ11 connector
*1
*1
The connector type may be RJ45 or RJ11 depending on the country/area.
