KX-TG2853BXS/KX-TG2854BXS/KX-TGA280BXS
4.4. Circuit Operation (Handset)
4.4.1. Construction
The circuit mainly consists of DSP and RF part as shown in the block diagram.
4.4.1.1. BBIC: IC1
Function:
• Battery Low, Power down detect circuit
• Ringer Generation
• Interface circuit (RF part, Speaker, Mic, LED, Key scan, LCD)

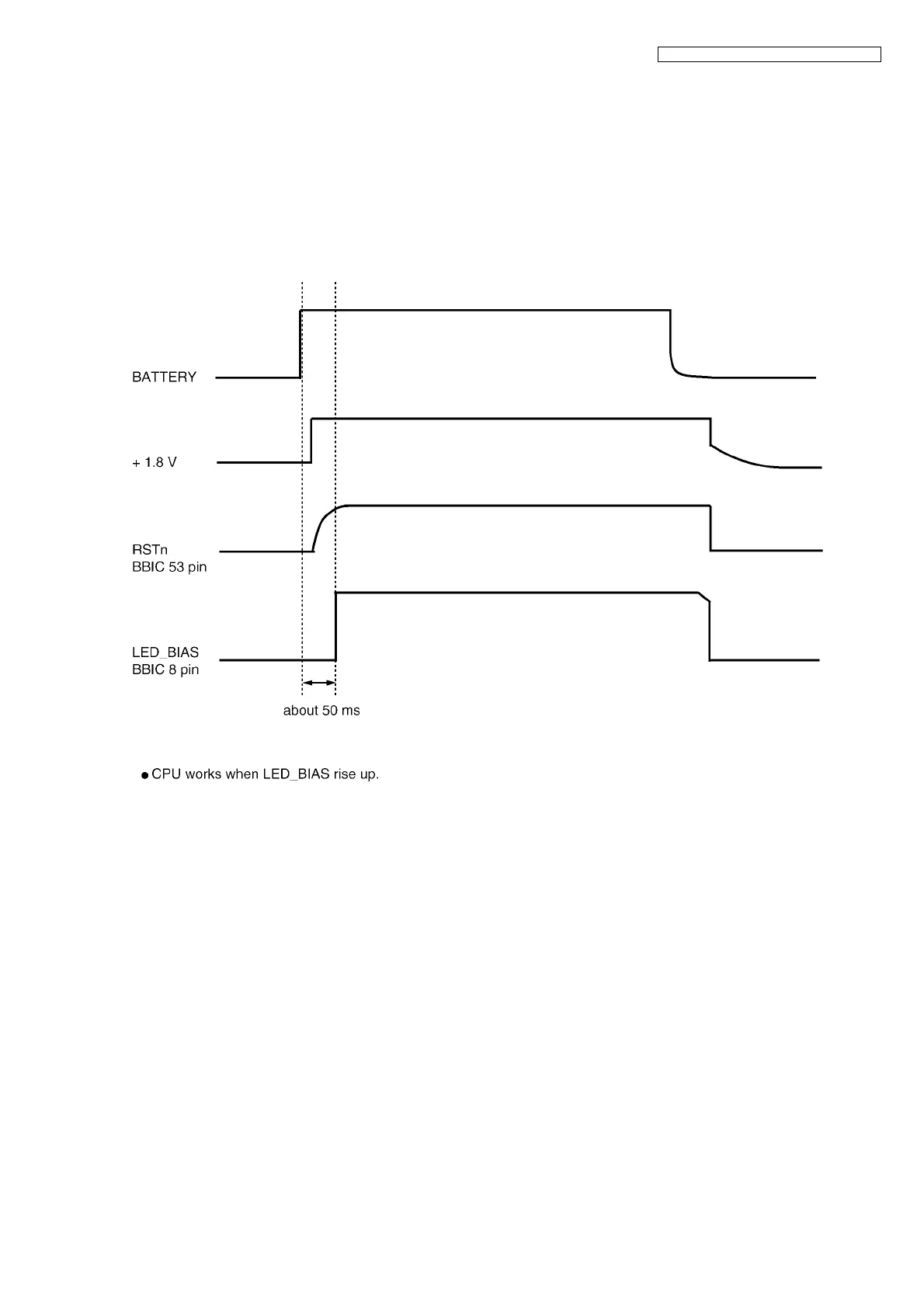

Initial waves:
4.4.1.2. RF part
Mainly voice signal is modulated to RF, or it goes the other way.
4.4.1.3. EEPROM: IC2
ALL setting data is stored.
