Before Use

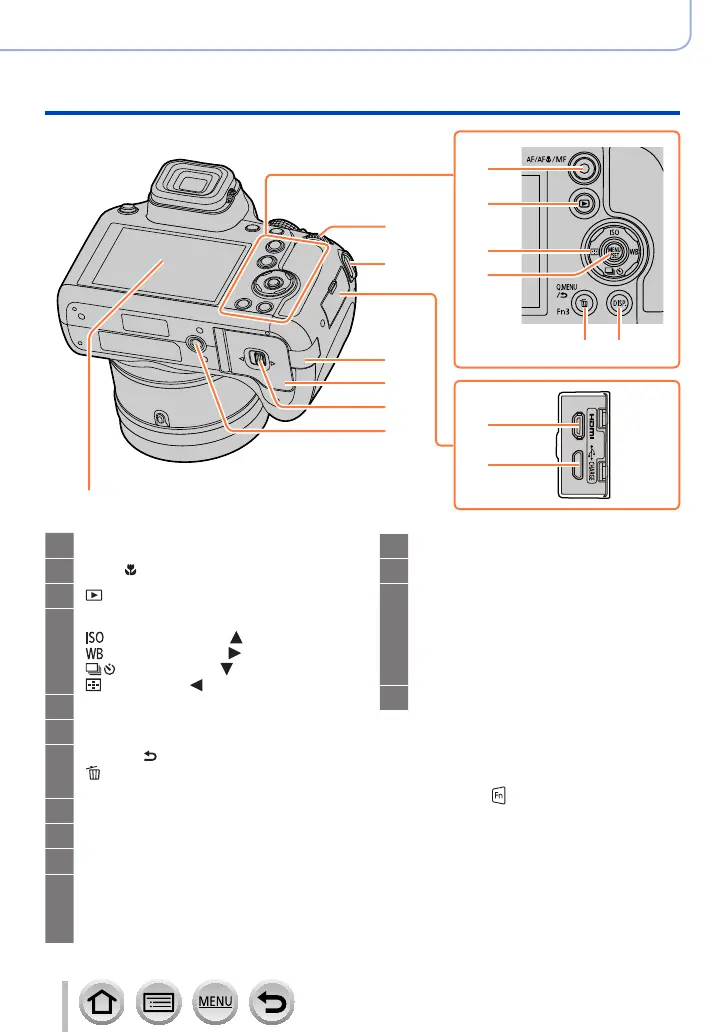

Names and Functions of Main Parts
17
Shoulder strap eyelet (→18, 19)
22
[AF/AF /MF] button (→83, 96, 97)
23
[ ] (Playback) button (→163)
24
Cursor button (→37)
[
] (ISO sensitivity) ( ) (→101)
[
] (White Balance) ( ) (→103)
[
] (Drive Mode) ( ) (→123)
[
] (AF Mode) ( ) (→85)
25
[MENU/SET] button (→37, 43)
26
[DISP.] button (→38)
27
[Q.MENU/ ] (Cancel) button (→45) /
[
] (Delete) button (→170) /
[Fn3] button (→47)
28
Rear dial (→37)
29
[HDMI] socket (→269)
30
[USB/CHARGE] socket (→22, 275, 278)
31
DC coupler cover (→284)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
32
Card/Battery door (→21, 26)
33
Release lever (→21, 26)
34
Tripod mount (→306)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
35
Touch screen (→40) / monitor (→285)
■
Function buttons [Fn4] to [Fn8]
• Buttons [Fn4] to [Fn8] (→47) are
touch icons. They can be displayed by
touching the [
] tab on the recording
screen.
