Before Use

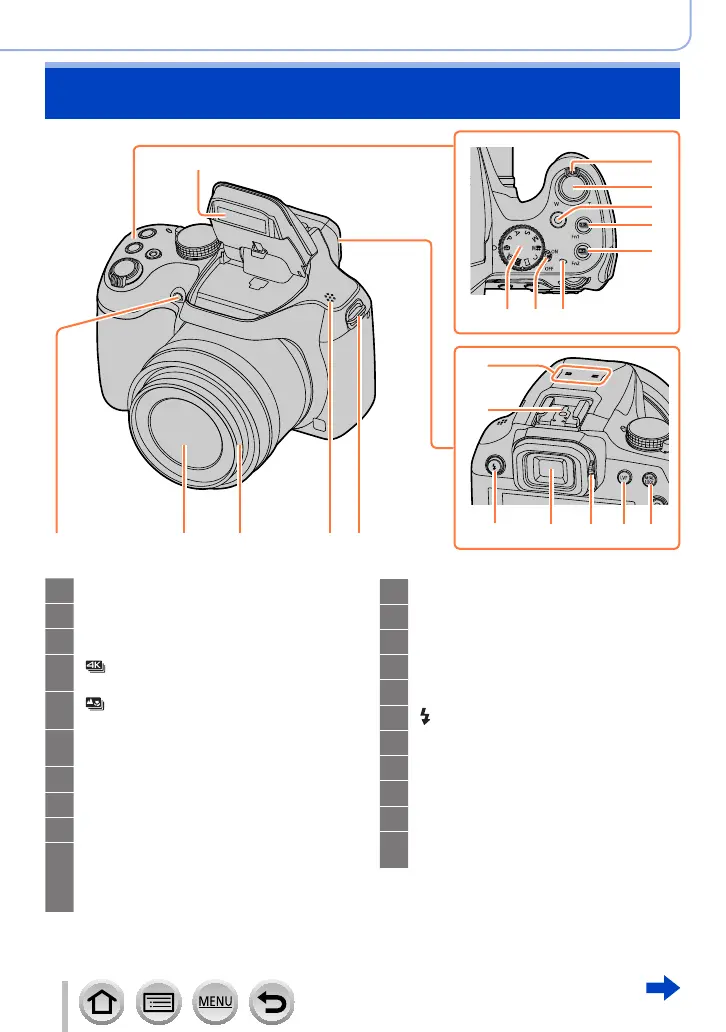

Names and Functions of Main Parts
1
Zoom lever (→34)
2
Shutter button (→35)
3
Motion picture button (→36)
4
[ ] (4K photo mode) button (→107) /
[Fn1] button (→47)
5
[ ] ([Post Focus]) button (→117) /
[Fn2] button (→47)
6
Charging lamp (→23) /
Wi-Fi
®
connection lamp (→229)
7
Camera [ON/OFF] switch (→30)
8
Mode dial (→36)
9
Flash (→140)
10
Stereo microphone (→32)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
11
Hot shoe (→283)
12
[AF/AE LOCK] button (→99)
13
[LVF] button (→33)
14
Diopter adjustment dial (→33)
15
Viewfinder (→33, 285)
16
[ ] (Flash open) button (→140)
17
Shoulder strap eyelet (→18, 19)
18
Speaker (→32)
19
Lens barrel
20
Lens
21
Self-timer indicator (→126) /
AF Assist Lamp (→32, 193)
1
2
3
4
5
678
9
10
11
1213141516
21 20 19 18 17
