Connecting to other equipment
Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Confirm the terminals on your TV and use a cable compatible with the terminals. Image
quality may vary with the connected terminals.
1 High quality
2 HDMI
socket
3 Video socket
1
Connect the camera and a TV.
• Check the direction of the terminals and plug in/out straight holding onto the plug. (It may
result in malfunction by the deforming of the terminal if it is plugged in obliquely or in wrong
direction.) Do not connect devices to incorrect terminals. Doing so may cause malfunction.
Preparations: Turn this unit and the TV off.
To connect with an HDMI micro cable (optional)
•
Always use a genuine Panasonic HDMI micro cable (RP-CHEU15: optional).
Part number: RP-CHEU15 (1.5 m) (5 feet)
• Audio will be played back as stereo (2ch).
• Pictures are not displayed on the LCD monitor.
• Some playback functions are restricted.
• [Playback] menu, [GPS/Sensor] menu and [Setup] menu cannot be used.
• For more details about VIERA Link (HDMI) playback, refer to P215.
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
• Check the [TV Aspect]. (P59)
• Audio will be played back in monaural.

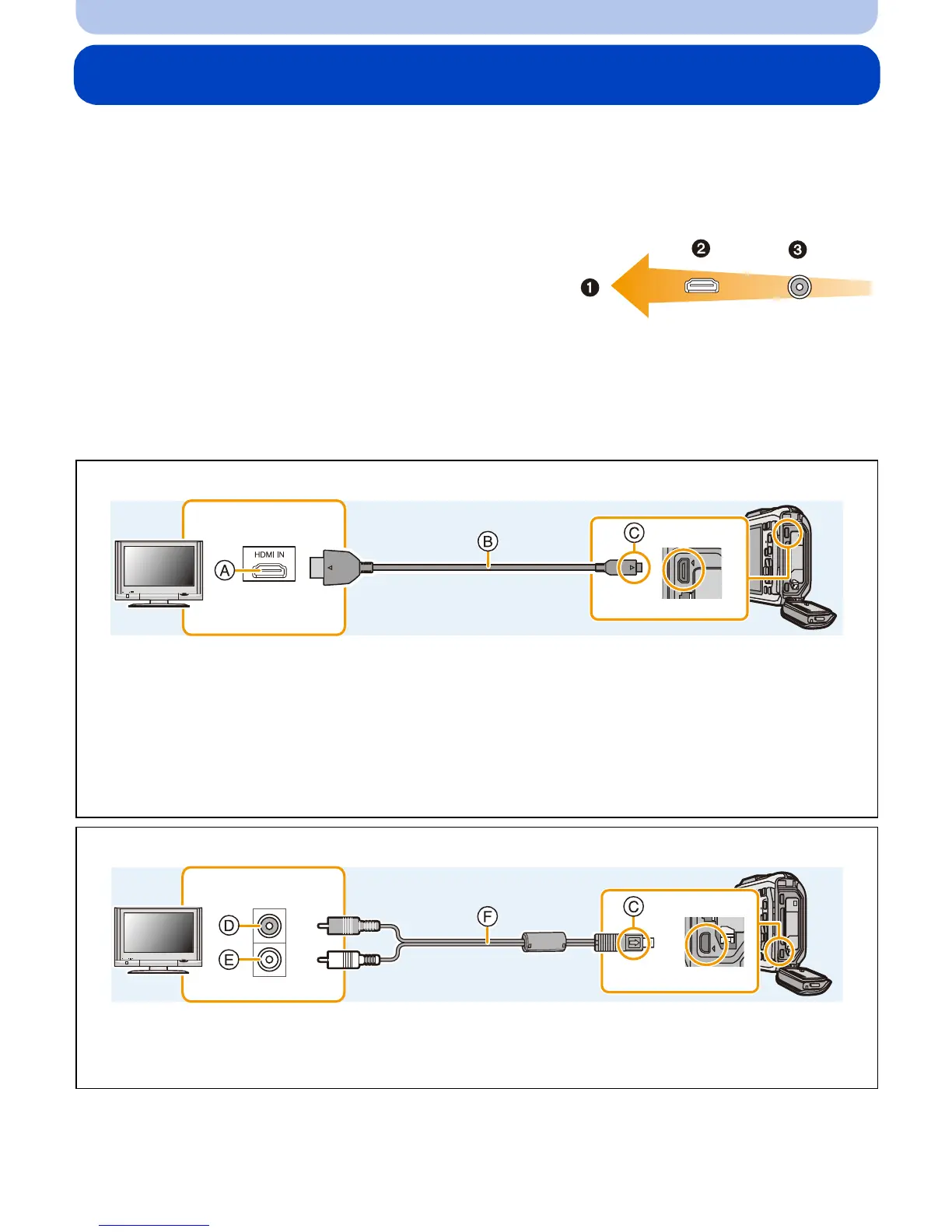

A HDMI socket
B HDMI micro cable (optional)
C Align the marks, and insert.
D Yellow: to the video input socket
E White: to the audio input socket
F AV cable (optional)
