Before Use

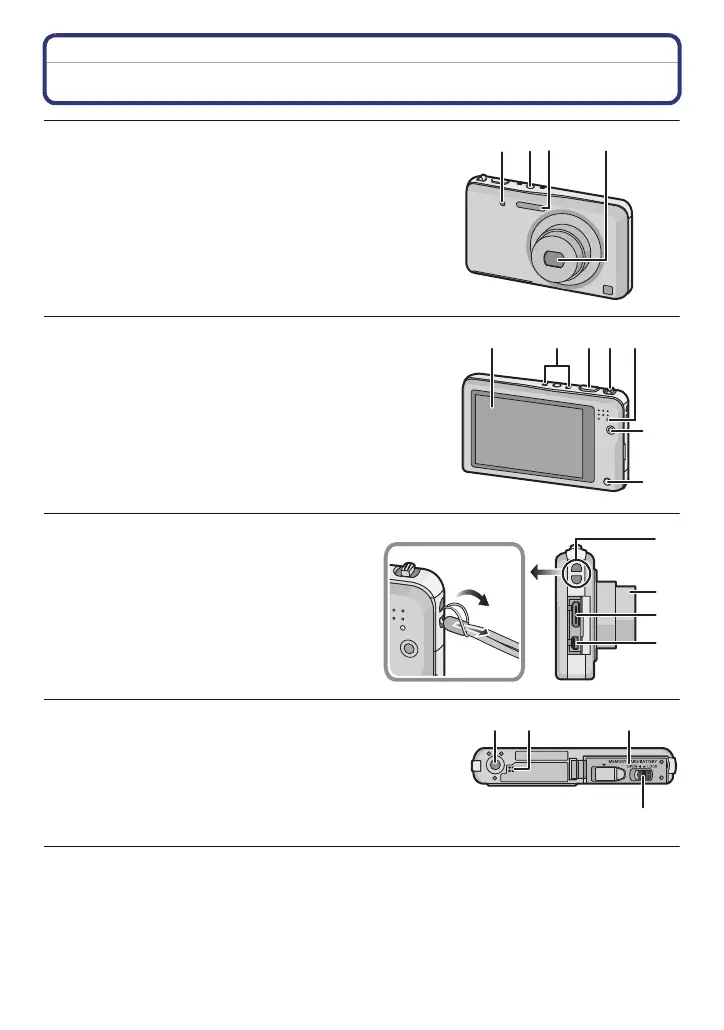

Names and Functions of Main Parts
1 Self-timer indicator (P78)/
AF Assist Lamp (P94)
2 Power button (P20)
3Flash (P75)
4 Lens (P5, 152)
5 Touch screen/LCD monitor (P8, 53, 149)
6 Microphone
7 Shutter button (P24, 27)
8 Zoom lever (P56)
9 Charging lamp (P11)
10 Motion picture button (P30)
11 Playback button (P33)
12 Strap eyelet
•
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
13 Lens barrel
14 [HDMI] socket (P130, 132)
15 [AV OUT/DIGITAL] socket (P11, 130,
137, 140, 144)
16 Tripod receptacle
17 Speaker (P44)
•
Be careful not to cover the speaker with
your finger. Doing so may make sound
difficult to hear.
18 Card/Battery door (P10, 15)
19 Release lever (P10, 15)
1
2
3
4
10
11
98765
14
15
13
12
