Preparation

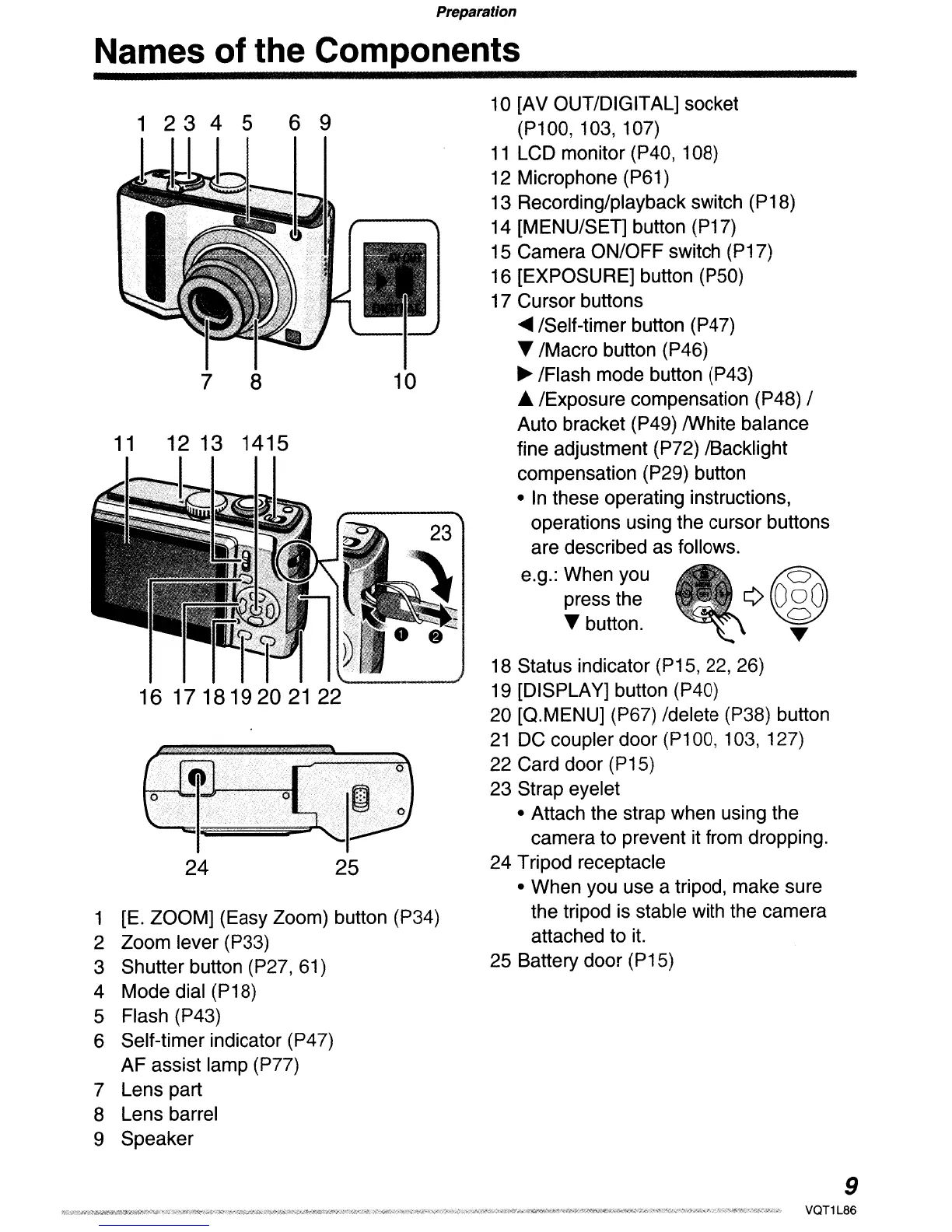

Names of the Components
10 [AV OUT/DIGITAL] socket
(P100, 103, 107)
11
LCD monitor (P40, 108)
12 Microphone (P61)
13 Recording/playback switch (P18)
14 [MENU/SET] button (P17)
15 Camera ON/OFF switch (P17)
16 [EXPOSURE] button (P50)
17 Cursor buttons
~
/Self-timer button (P47)
T /Macro button (P46)
~
/Flash mode button (P43)
..
/Exposure compensation (P48) /
Auto bracket (P49) /White balance
fine adjustment (P72) /Backlight
compensation (P29) button
•
In
these operating instructions,
operations using the cursor buttons
are described as follows.
e.g.: When you
press the
T button.
18 Status indicator (P15, 22, 26)
19 [DISPLAY] button (P40)
20 [Q.MENU] (P67) /delete (P38) button
21
DC coupler door
(P1
00,
103, 127)
22 Card door (P15)
23 Strap eyelet
• Attach the strap when using the
camera to prevent
it
from dropping.
24 Tripod receptacle
• When you use a tripod, make sure
the tripod is stable with the camera
attached to
it.
25 Battery door (P15)
10
25
569
7 8
24
1 [E. ZOOM] (Easy Zoom) button (P34)
2 Zoom lever (P33)
3 Shutter button (P27, 61)
4 Mode dial (P18)
5 Flash (P43)
6 Self-timer indicator (P47)
AF assist lamp (P77)
7 Lens part
8 Lens barrel
9 Speaker
9
