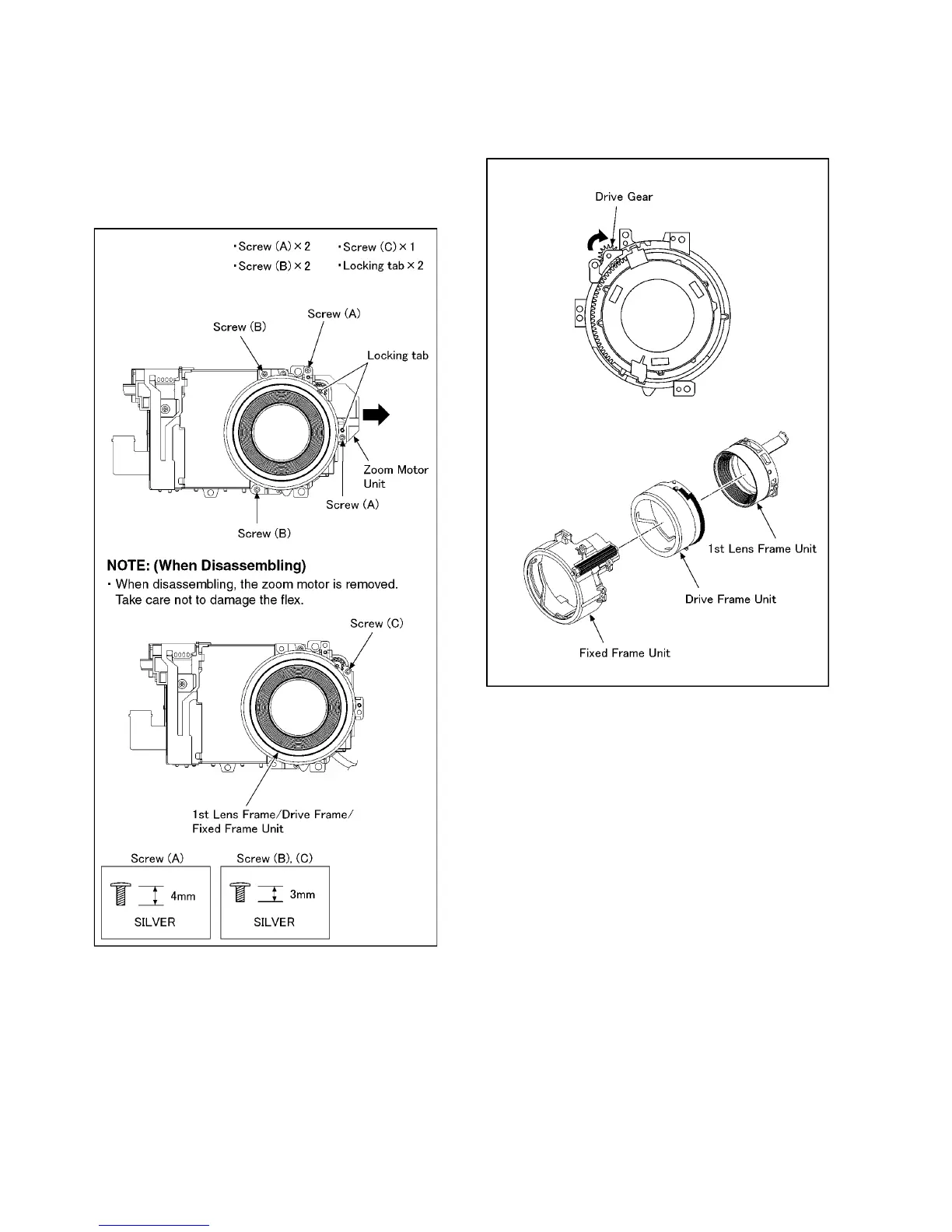

8.4.1. Removal of the 1st Lens Frame/

Drive Frame/Fixed Frame Unit

1. Unscrew the 2 screws (A).

2. Depress the zoom motor unit to relese the locking tabs

(2 pcs), and then remove to the indicated by arrow.

3. Unscrew the 2 screws (B).

4. Unscrew the 1 screw (C).

5. Remove the 1st lens frame/drive frame/fixed frame unit.

8.4.2. Removal of the 1st Lens Frame Unit

and Drive Frame Unit

• Turn the drive gear to the indicated by arrow fully, and then

remove the 1st lens frame unit and drive frame unit.
