Panasonic Lumix DMC-TZ1EB - Assembly Procedure for the Lens

29

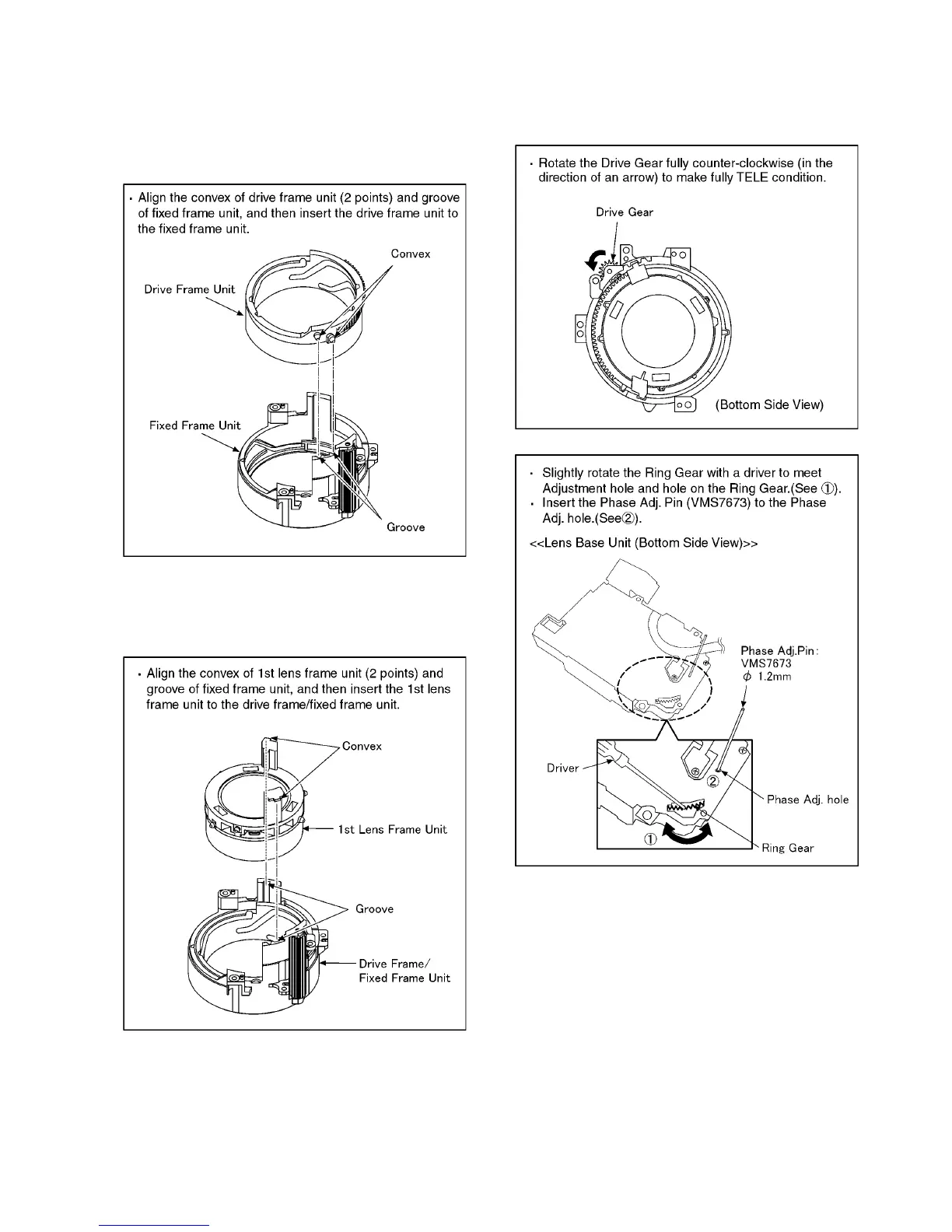

8.5. Assembly Procedure for the
Lens
8.5.1. Phase alignment of the Drive Frame
Unit and Fixed Frame Unit
8.5.2. Phase alignment of the 1st Lens
Frame Unit and Drive Frame/Fixed
Frame Unit
8.5.3. Phase alignment of the 1st Lens
Frame/Drive Frame/Fixed Frame
Unit and Lens Base Unit
