9 Measurements and Adjustments

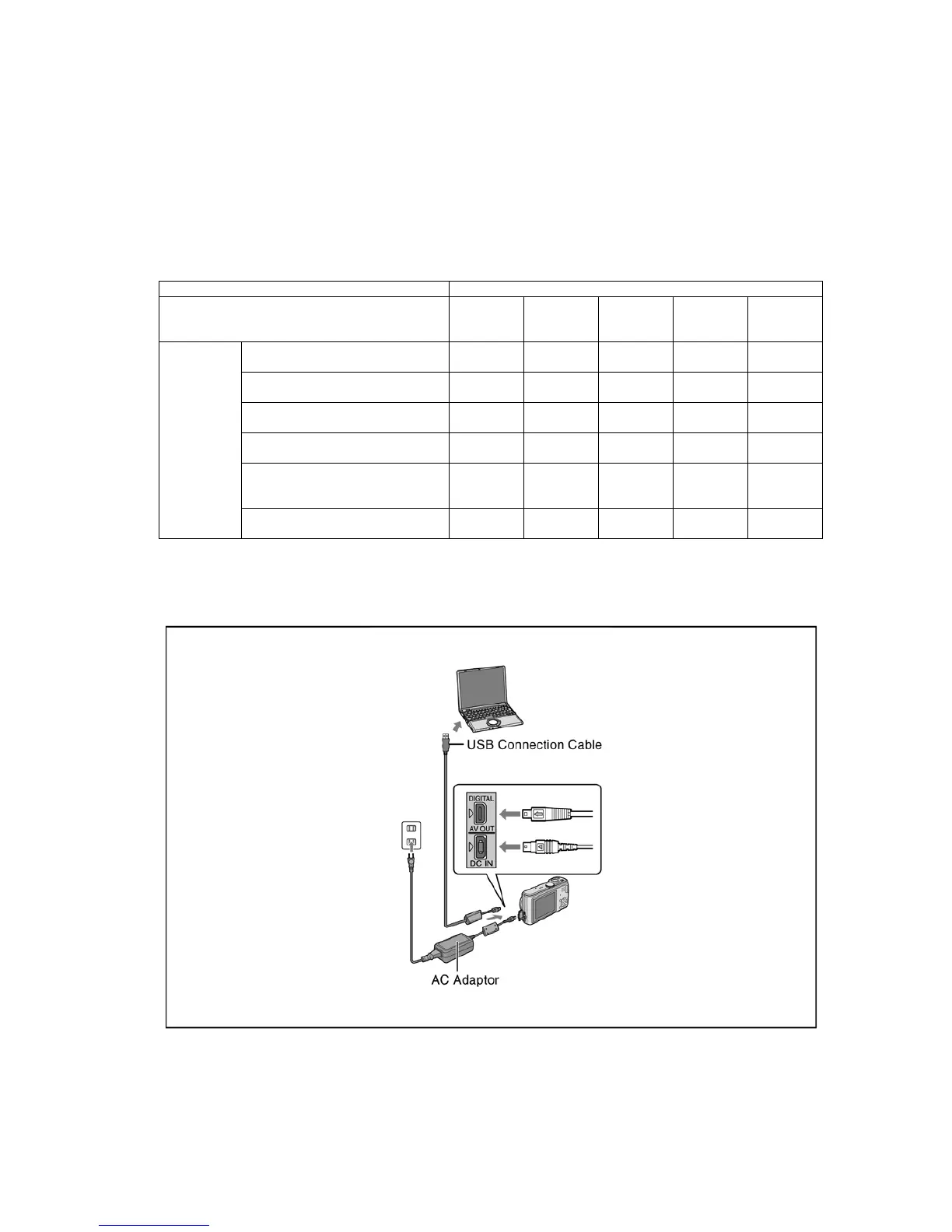

9.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
The Adjustment software is available at “TSN Website”, therefore, access to “TSN Website” at “Support Information from NWBG/
VDBG-PAVC”.
NOTE:
After adjustments have been terminated, make sure to achieve “INITIAL SETTINGS”.
NOTE:
*There is no LCD adjustment in this model.
*There is no CCD Black scratch compensation adjustment (BKI) in this model.
Replaced Part
Adjustment Item
Main P.C.B. VENUS
(IC6001)
Flash-ROM
(IC6002)
Lens Part
(Excluding
CCD)
CCD Unit
Camera
Section
OIS hall element adjustment
(OIS)
OOOO
Back focus adjustment
(BF)
OOOO
Shutter adjustment
(SHT)
OOOOO
ISO sensitivity adjustment
(ISO)
OOOOO
AWB adjustment
High brightness coloration inspection
(WBL)
OOOOO
CCD white scratch compensation
(WKI)
OOO O
