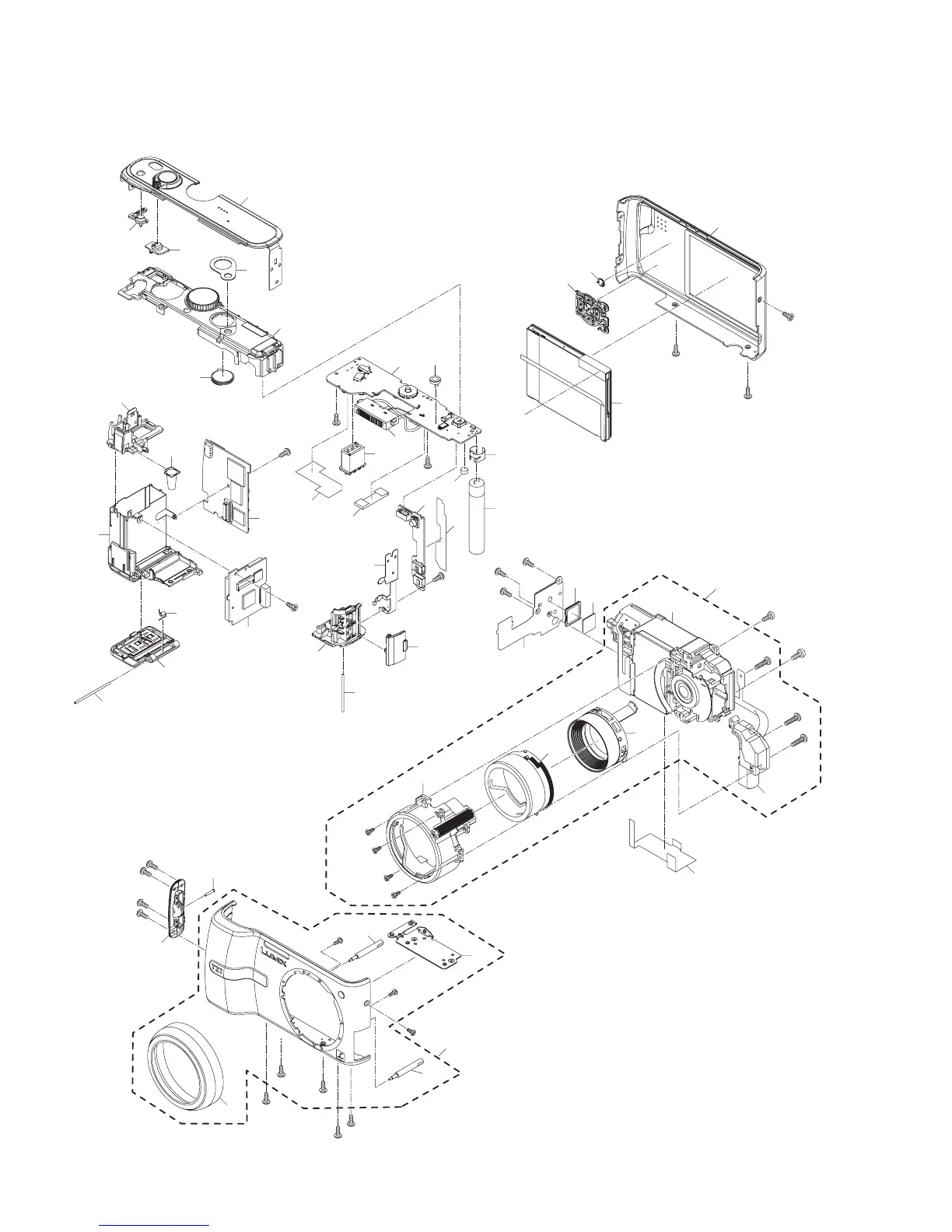

S7. Exploded View
S7.1. Frame and Casing Section
S-30
38
36
37
24
28
11
29
B22
B21
31
19
25
15
13
12
14
16
7
18
17
5
B7
4
B8
26
30
27
B17
B18
B19
B20
3
B4
B23
B24
B10
B9
B5
34
35
32
B204
B202
B203
B201
207
206
205
204
B210
B209
B16
B15
208
202
201
203
B205
B206
B207
B14
21
22
6
8
B2
20
23
2
B208
10
39
B1
9
209
1
B6
B11
B3
33
40
41
