S-23

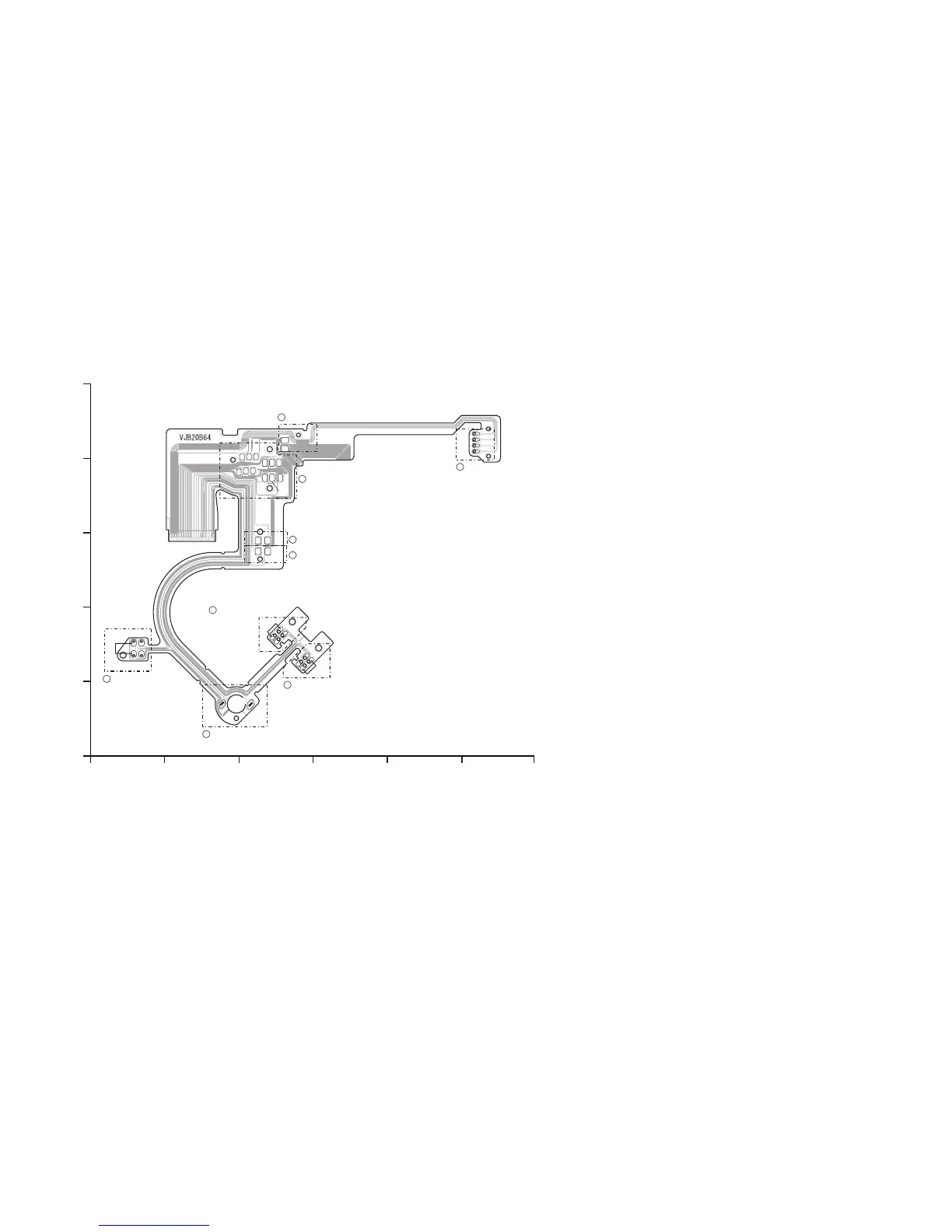

S5.4. Lens Flex P.C.B.
123456
A
B
C
D
E
DMC-TZ1 LENS FLEX P.C.B.
MR SENSOR
A2
A
G
ZOOM ENCODER 2
F
ZOOM ENCODER 1
LINEAR ACTUATOR
B1
B
B2
A3
A1
A4
OIS UNIT
C
C6
C1
C7
C12
C4
C5
C3
C2
C8
C9
C10
C11
D1
D2
E2
E1
IRIS MOTOR
E
F3
F1
F2
H1
H2
ZOOM MOTOR
H
I
I3
ZOOM DETECTION
I1
I2
G3
G1
G2
SHUTTER MOTOR
D
Pin 39
Pin 1
