1.4. How to Discharge the Capacitor on Power/Top PCB
CAUTION:
1. Be sure to discharge the capacitor on POWER/TOP PCB.
2. Be careful of the high voltage circuit on POWER/TOP PCB when servicing.
[Discharging Procedure]
1. Refer to the disassemble procedure and Remove the necessary parts/unit.
2. Put the insulation tube onto the lead part of Resistor (ERG5SJ102:1kΩ /5W).
(an equivalent type of resistor may be used.)
3. Put the resistor between both terminals of capacitor on POWER/TOP PCB for approx. 5 seconds.
4. After discharging confirm that the capacitor voltage is lower than 10V using a voltmeter.

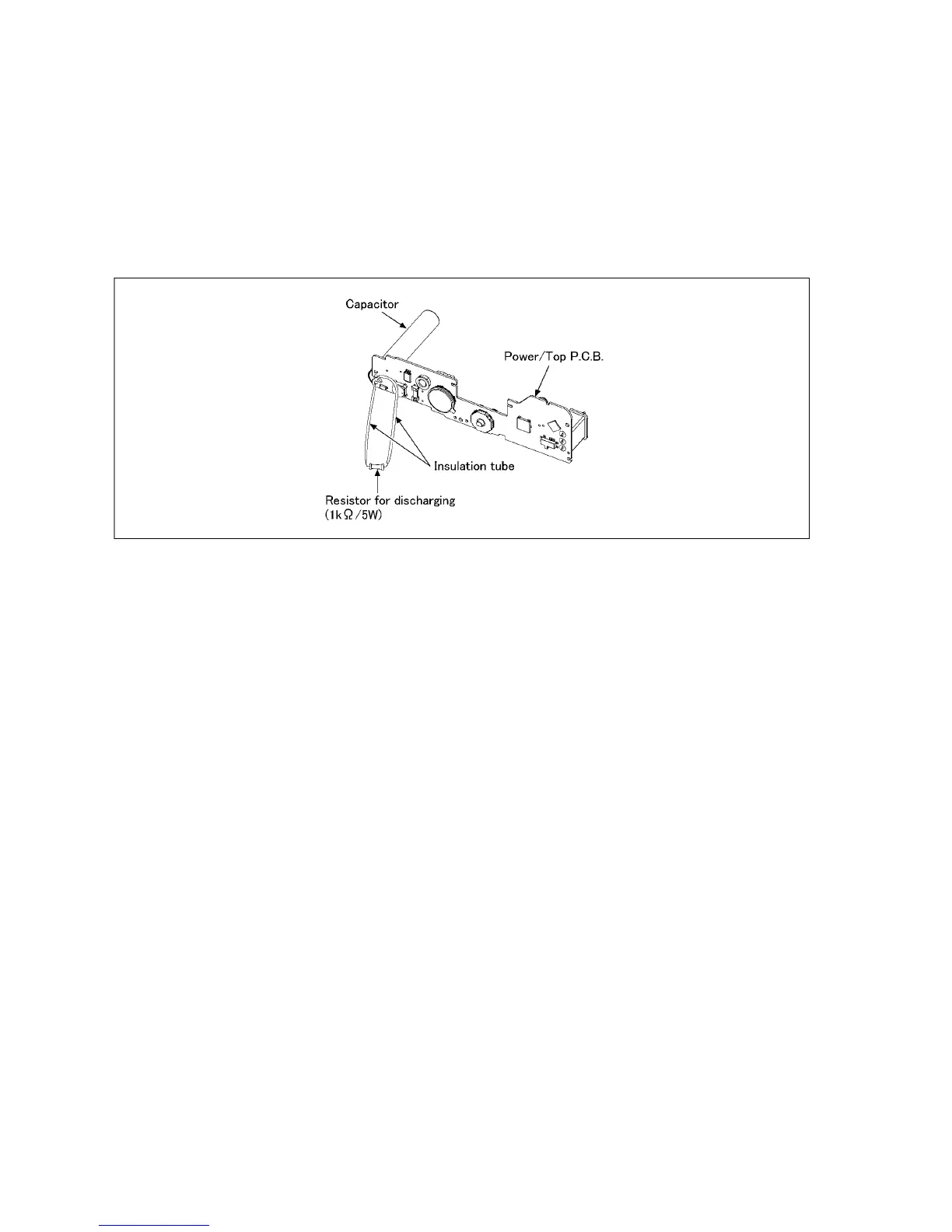

Fig. F1
