Installation 5

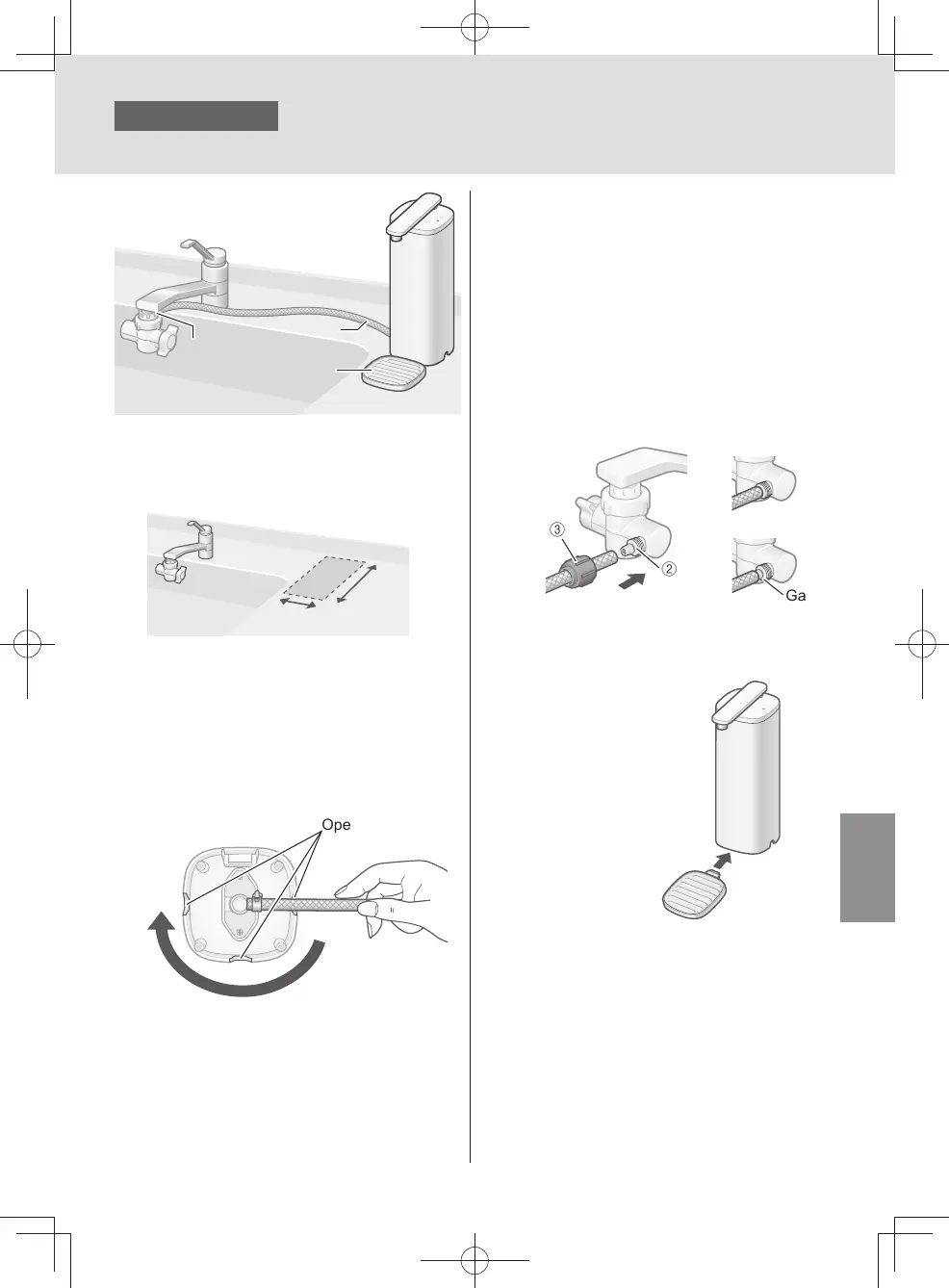

Install the Water Purier
1
Choose a stable, level
surface.
16.5 cm
or more
10 cm
or more
2
Determine the most convenient
location for the main unit,
and then decide the direction
to extend the hose (using the
opening section).
Opening section
3
After completing the preparations,
connect the hose.
①
Remove the hose fastening nut from
the bypass selector, and pass the hose
through the nut.
②
Insert the hose into the bypass selector
as far as it will go.
③
Tighten up the hose fastening nut
securely.
z
Do not use any tools for this assembly
(since the hose fastening nut may be
damaged).
< OK >
< NG >
①③
②
Gap
4
Set the tray.
3
4
2
EN13
