Optical Parts Disassembly

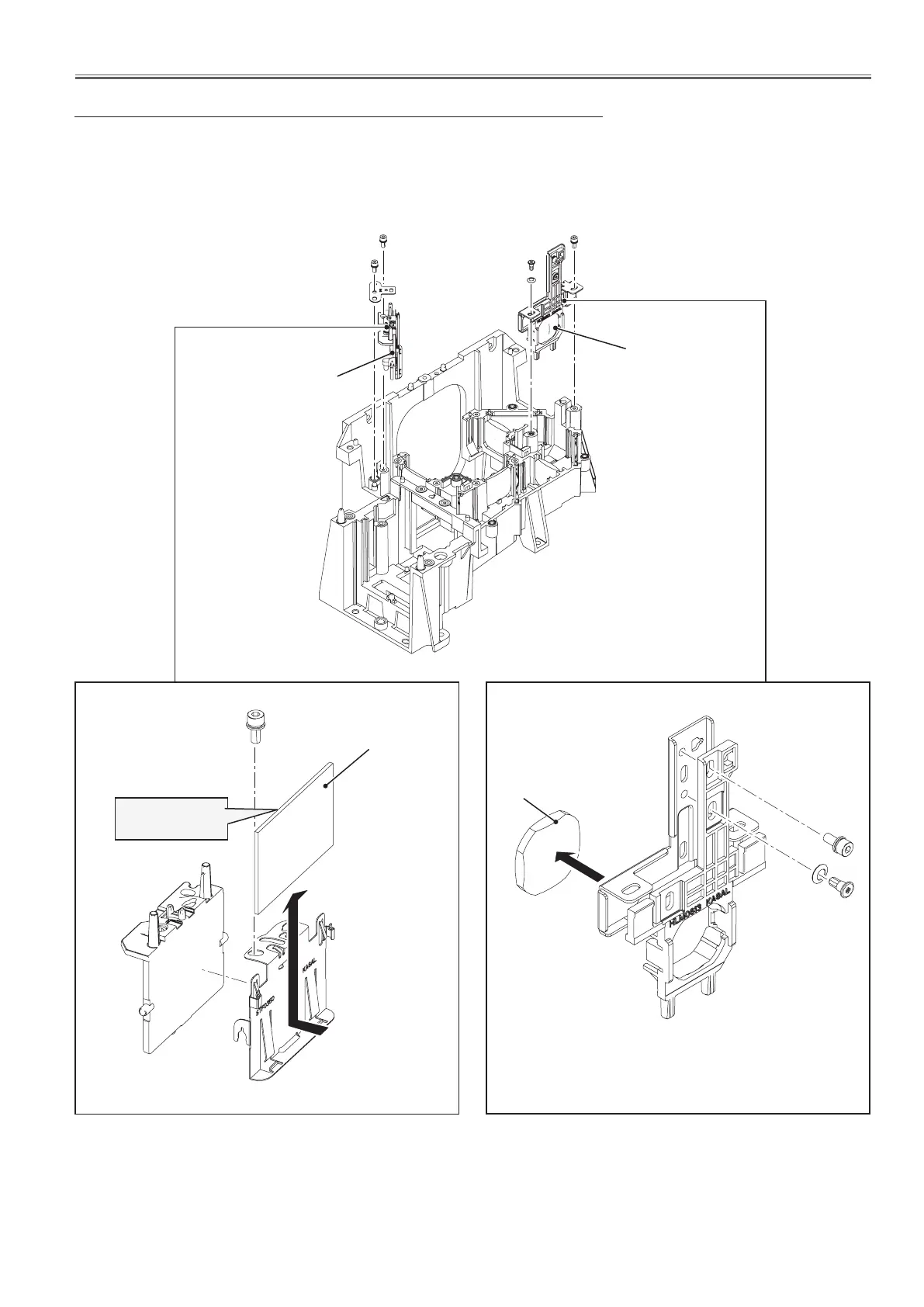

5-1. Mirror(B) assy and relay lens(IN) assy removal
1. Remove 2 screws-A (M2.5x6) and pull the mirror(B) assy upward off.
2. Remove 1 screw-B (M2.5x6) and 1 screw-C (M2x4), and pull the relay
lens(In) assy upward off.
Relay lens(In)
assy
A
A
B
C
M2.5x6
M2.5x6
M2.5x6
Mirror(B)
Relay lens(In)
Marking behind
the mirror
Mirror(B) assy
