Panasonic PT-EW630UL

-38-
Optical Parts Disassembly
5-2. Optical parts in the optical unit
Condenser lens(R)
Dichroic mirror(B)
Mirror(R)
Condenser lens(B)
Mirror(R)
Relay lens(In)
Condenser lens(G)
Dichroic mirror(G)

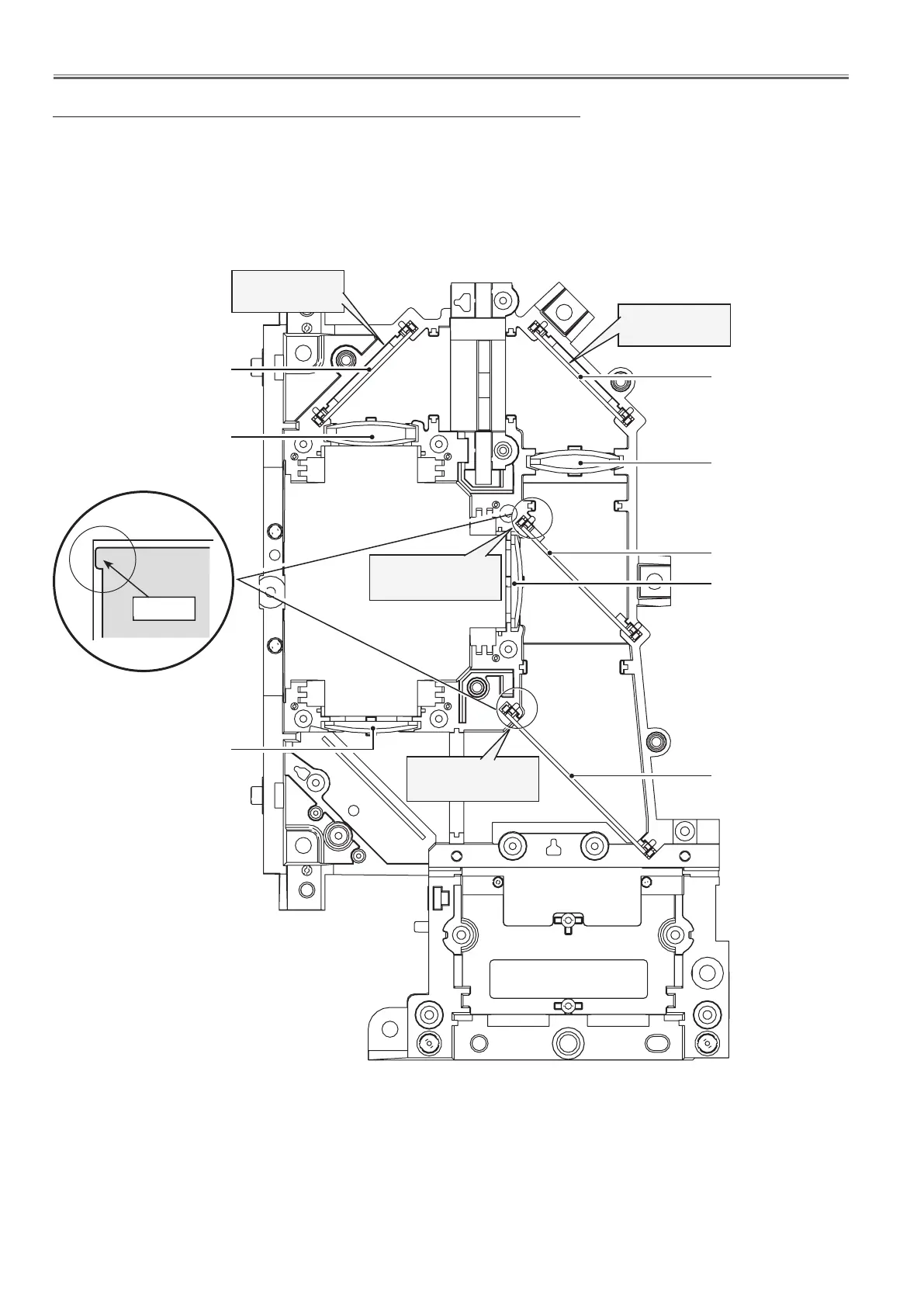

When mounting or assembling the optical parts in the optical unit, the parts must be mounted in the specified location
and direction as shown in the figure below.
Point marker
comes this side up
Point marker
comes this side up
Marking behind
the mirror
Marking behind
the mirror
Marker
