Panasonic PT-MZ770

Chapter 7 Appendix — Technical information
ENGLISH - 215

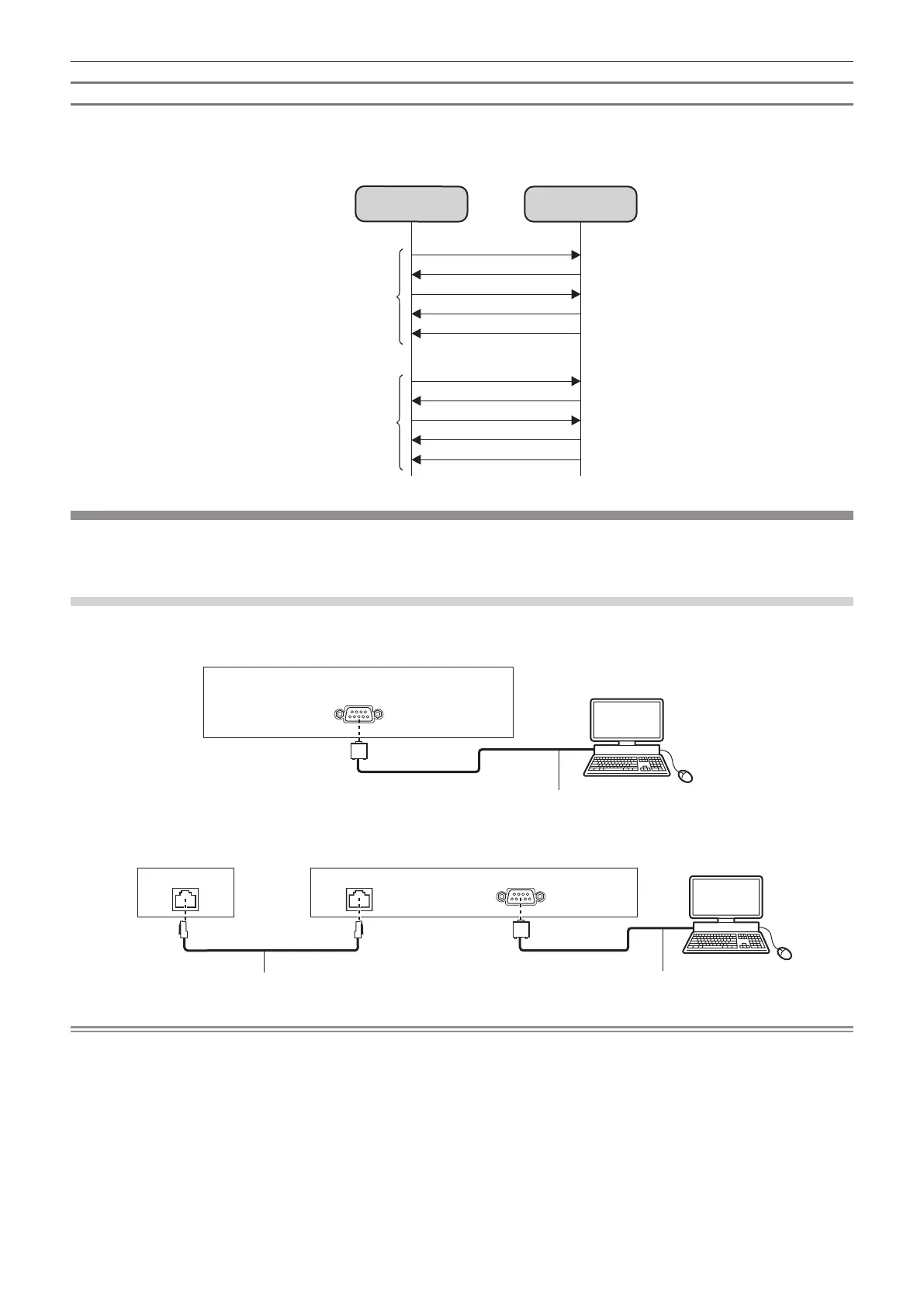

Communication ow between the server and the client
When sending / receiving commands via LAN, refer to the communication ow shown below.
Server: the projector
Client: the control device such as a computer
Client
Server
First session
Second session
Connection query
Sending key
Send rst command
Respond rst command
Cut off
Connection query
Sending key
Send second command
Respond second command
Cut off
<SERIAL IN> terminal
The <SERIAL IN> terminal of the projector conforms with RS-232C so that the projector can be connected to and
controlled from a computer.
Connection
When connecting directly
Projector connecting terminals
Computer
D-Sub 9p (male)
Communication cable (straight)
D-Sub 9p (female)
When connecting using DIGITAL LINK compatible device
DIGITAL LINK compatible device
Computer
D-Sub 9p (female)
Projector connecting terminals
DIGITAL LINK DIGITAL LINK
D-Sub 9p (male)
Communication cable (straight)
LAN cable (straight)
Note
f The destination of [RS-232C] (x page 120) must be set according to the connection method.
f When connecting using a DIGITAL LINK compatible device, set the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY
MODE] to [NORMAL] to control the projector in the standby mode.
When [STANDBY MODE] is set to [ECO], the projector cannot be control during standby.
