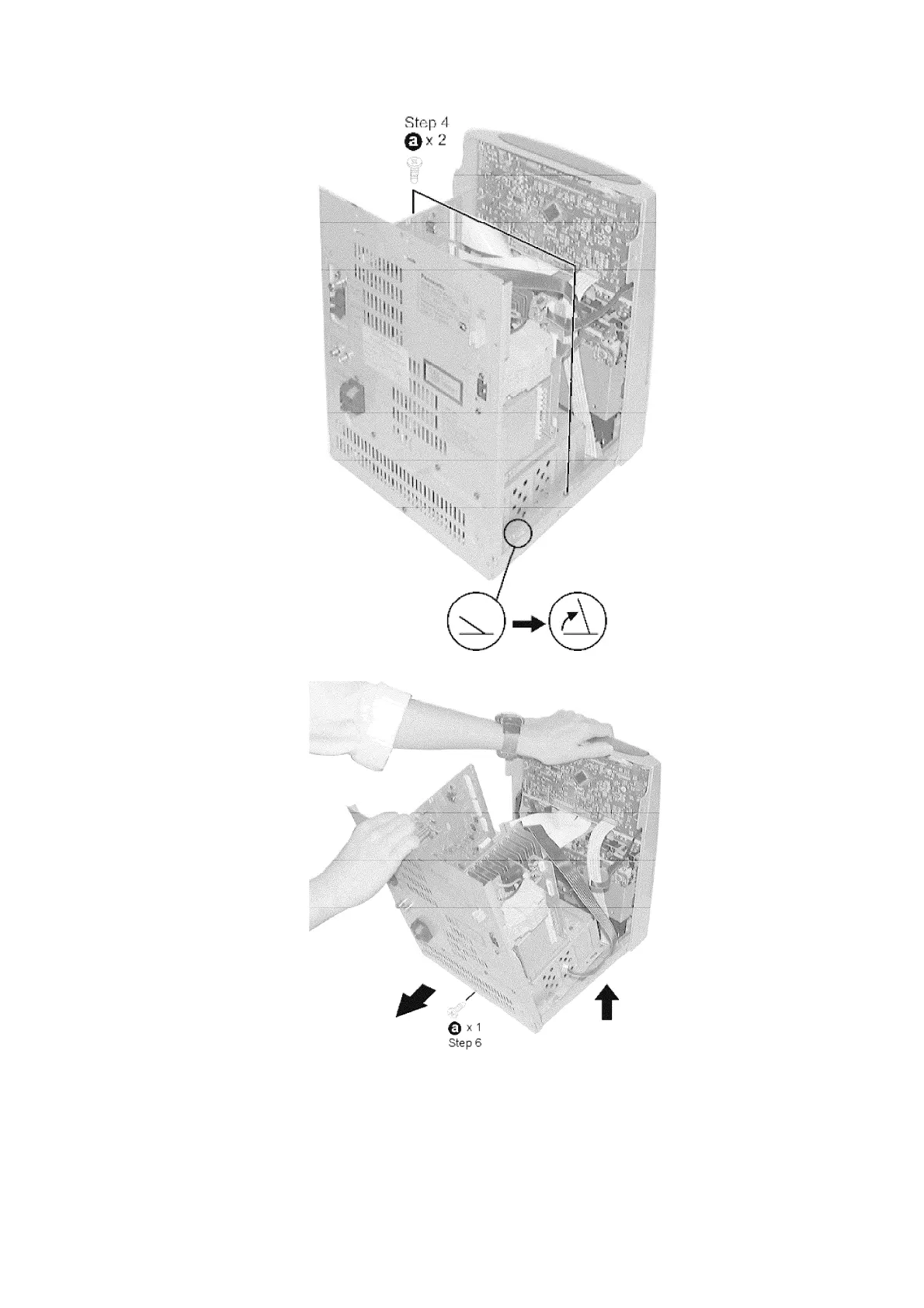

Step 5 Turn locating pin on both sides 90°. (Locating pin need not to be bent back.)
Step 6 Release the wires CN302, CN303, CN304, CN309 and CN502. Remove rear panel by pulling it
backward and lift the rear panel assembly.
14
