Panasonic SA-AK22 - CD Automatically Adjustment Result Indication; CD Test Mode Function; How to Set CD Test Mode

No. Error Error
Display
Problem condition
1 POWER AMP
output abnormal
F61 When POWER is switched on, power become off
automatically.
During normal operation, if DC DET become L, PCNT
shall become
L and the error display on the left shall be displayed.
(IC501)
11. CD Test Mode Function
This CD test mode is provided to check CD unit without connecting to changer loading mechanism.
This mode shall operate CD PLAY with CD unit being connected only and CD Automatic Alignment
result is shown on FL display.

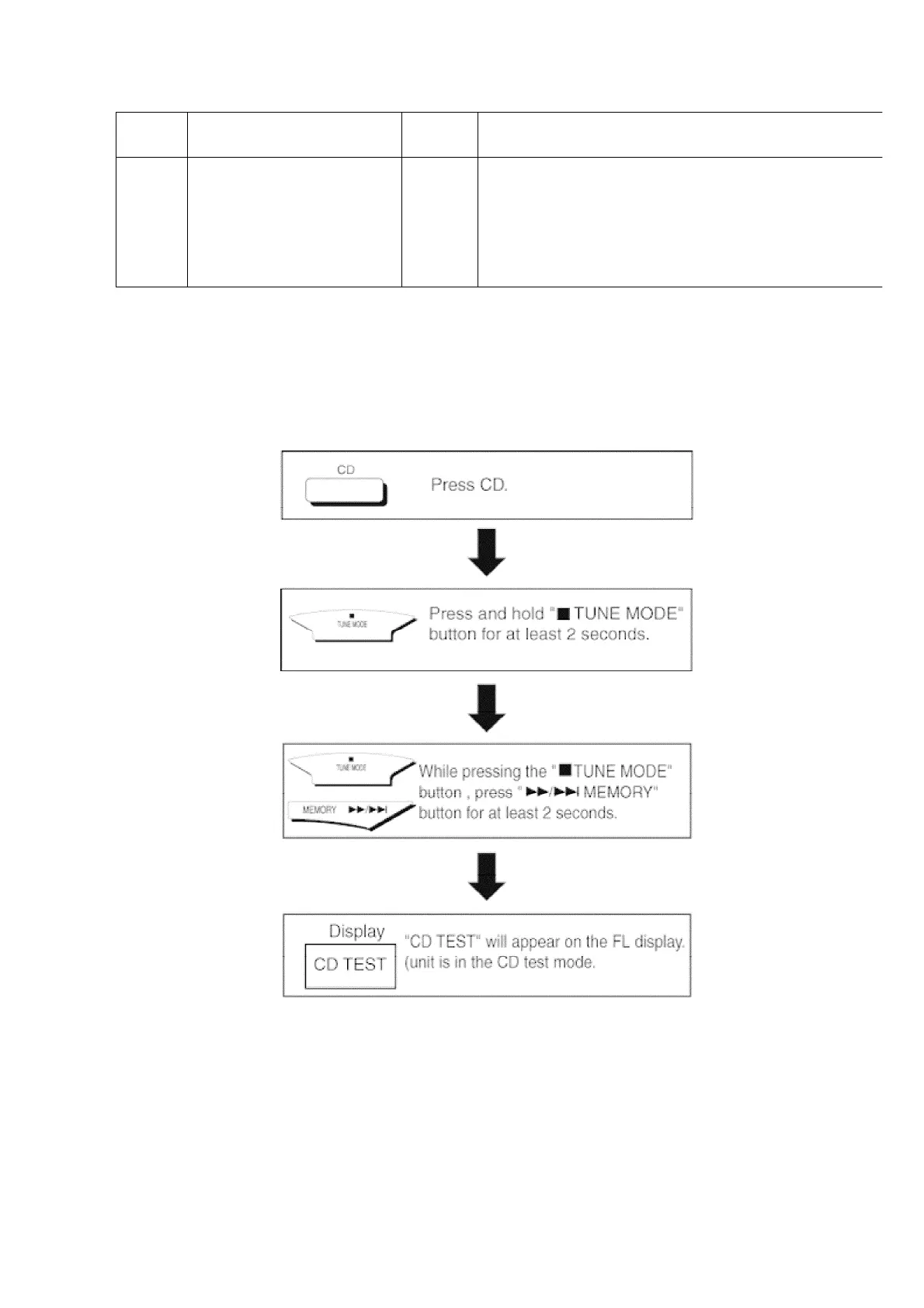

11.1. How to set CD test mode
11.2. CD Automatically Adjustment result indication
Under CD test mode, pressing the numeric key ‘0’ on the remote controller will display the auto
adjustment result. FLOCK, TLOCK and CLVS status shall be shown as below:
33
